URILYZER 100 PRO URINE ANALYZER with printer
Category:
browse:
URILYZER 100 PRO URINE ANALYZER with printer
Stock availability:
92
Product Code:
24049
Unit of sale:
1 pc.
Minimum order:
1
Type: IVD - Professional Use  Class: A
RDM (NSIS):
2428523
CND:
W020101020102
EAN/UPC:
8023279240498
PARAF:
977810617
CH-REP:
Yes
UK-REP:
Yes

declaration
of conformity

ISO certificates

operator
manual

download
catalogue page

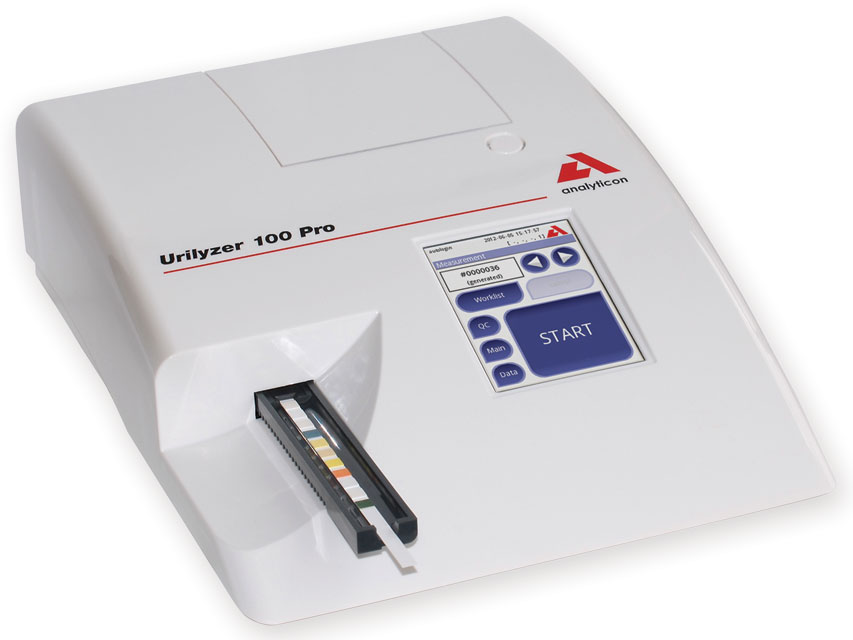

URILYZER® 100 PRO URINE ANALYZER - with printer

Urilyzer® 100 PRO is a semi-automated and compact urine test strip reader that offers a broad range of optimized features.
The intuitive user interface improves data entry and allows manual entry of colour and turbidity from a predefined list or by an additional comment.
Moreover, the system provides the user with a high level of customization with flexible testing and reporting options.
The intelligent database-driven data management provides multiple filter options.

To be used with urine strips 24056, 24057, 24058, 24062, 24063, 24064 only.

Manual GB, FR, IT, ES. Other languages available on www.analyticon-diagnostics.com
GB, FR, IT, ES, DE, SE, DK, NL, CZ, PL, BG, RO, RU, LT, NO.
Internal software: GB, FR, IT, ES, DE, GR, NO, SE, FI, DK, HU, CZ, PL, RO, RU.

Made in Hungary.
Technical Specifications
Measurements: 50 meas./hour in normal mode, 120 meas./hour in fast mode
Memory: 3,000 patient test results and 1,000 QC Test results
Display: 3.5" QVGA Touch-screen LCD (resolution 240x320)
Printer: Low noise thermal printer with paper roll for about 280 meas
Printout: Current number measurement, Date and time, Serial No. of the meter, patient-I-D, Asterisk on pathological results, Parameters can be printed in Sl, Conventional or arbitrary units
Accuracy: Meter adjustment in 5 levels according to individual requirements
Type: Reflectance photometer wavelengths: 505, 530, 620, 660 nm
Interfaces: RS232 serial port, USB A, USB B, PS2 (external keyboard, barcode reader). Ethernet port, HL7 protocols LIS2 (ASTM+), HL7, POCT1 A2
Size - weight: 208x290x80 mm (WxDxH) / 1.2 kg
Power supply: 100-240 V, 50-60 Hz
