URILYZER 500 PRO URINE ANALYZER with printer
Category:
browse:
URILYZER 500 PRO URINE ANALYZER with printer
Stock availability:
0
Product Code:
24050
Unit of sale:
1 pc.
Minimum order:
1
Type: IVD - Professional Use  Class: A
RDM (NSIS):
2560727
CND:
W020101020102
EAN/UPC:
4260033719133

declaration
of conformity

ISO certificates

operator
manual

download
catalogue page

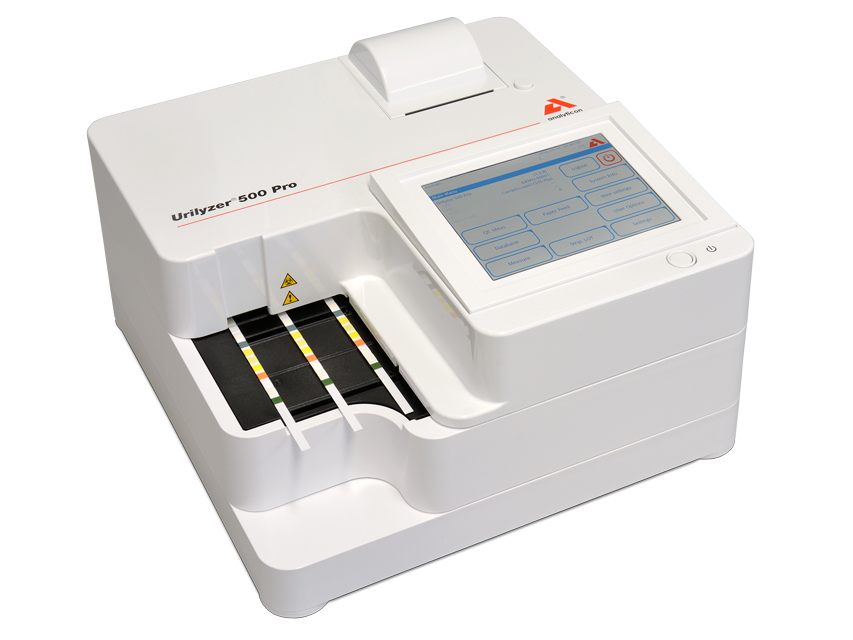

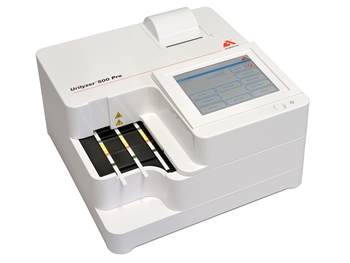

URILYZER® 500 PRO URINE ANALYZER with printer

Semi-automated and compact urine test strip analyzer with continuous loading function. The high throughput of up to 500
tests/hour in combination with state-of-the-art operator and data management functions provide the ideal system for mid-sized to bigger laboratories and hospitals. It also provides enhanced QC management and connectivity capabilities to meet the growing demands for compliance management and data capture.

Available software in GB, FR, IT, ES, DE, PL, HU, RO, SE, RU.

- external barcode reader
- built-in thermal printer with automatic printout or transfer of results
- up to 500 tests/hour due to the possibility of testing urine strips continuously
- implemented protocols: LIS2 (ASTM+) and HL7
- customization of the QC protocol according to regulatory requirements and laboratory standards.

Moreover, the system offers high quality and efficiency, high level of customization with flexible testing and reporting options.

Made in Hungary.
Technical Specifications
Measuring method: reflectance photometer with 4 discrete wavelengths 505, 530, 620, 660 nm

Parameters: Bilirubin, Urobilinogen, Ketones, Ascorbic Acid, Glucose, Protein (Albumin), Blood (Hemoglobin), pH, Nitrite, Leucocytes, Specific Gravity

Measurements: up to 500 tests/hour

Data storage: patient database: 5.000 tests / QC database: 5.000 tests

Display: 5.7†LCD VGA capacitive touchscreen

Interfaces: serial RS232, USB Type A, USB Type B, PS2 (external keyboard, barcode reader), Ethernet

Power supply: 12V DC/5A

Size- weight: 300x300xh 180 mm - 6.5 kg
