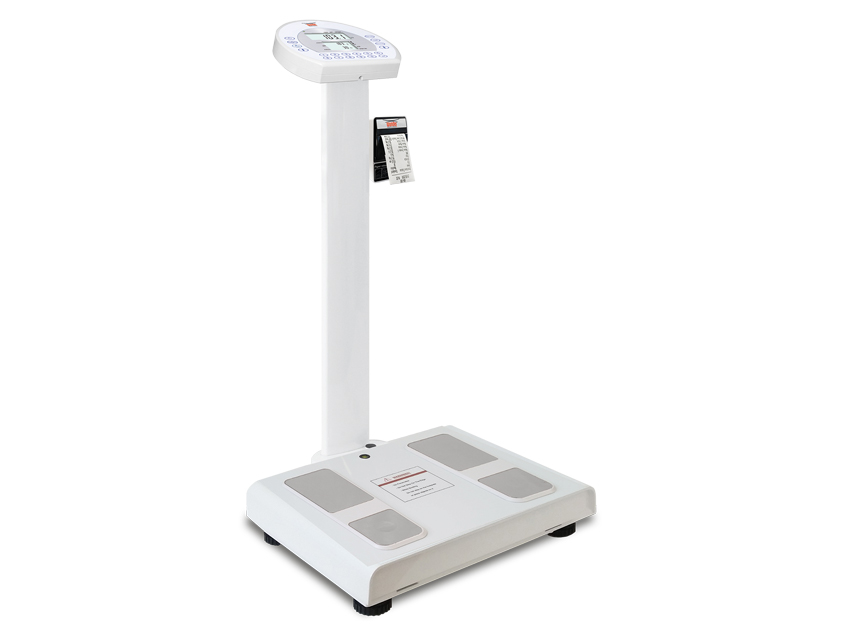

WUNDER WBA300 BODY COMPOSITION ANALYSER WITH PRINTER 300 kg - Class III
Category:
browse:
WUNDER WBA300 BODY COMPOSITION ANALYSER WITH PRINTER 300 kg - Class III
Stock availability:
1
Product Code:
25015
Unit of sale:
1 pc.
Minimum order:
1
Type: No medical device
CH-REP:
No
UK-REP:
No

operator
manual
WUNDER WBA300 BODY COMPOSITION ANALYSER WITH PRINTER - 300 kg - Class III

Professional electronic scale with BIA body composition analyser.
Simple, fast, and non-invasive examination of BMI, fat, muscle, and water components.
Functions: weight, tare, mother/child weight, hold, BMI, autozero, programmable auto-off.

- Analysis of nutritional solutions advised by professionals
- Complete check-up in 20 sec. with a single weight reading
- Easy interpretation of results gives a complete picture, helping the patients to understand the importance of this screening.
- Large painted aluminium base with 4 stainless steel tactile electrodes.
- ABS indicator with LCD display set on a column in painted aluminium.
- Supplied with power adaptor, RS232 interface, level, 4x large anti-slip adjustable feet, 2 integrated wheels for easy transport, thermal printer with its power cable, connector, and 1 paper roll (57 x Ø 30 mm).
- Multilingual manual: GB, IT, ES.

Printer Data: Date, Time, Body Type, Sex, Age, Height, Weight, Clothes Weight, BMI, BMR, Fat (kg -%), FFM, Muscle Mass, Protein Mass, Skeletal Muscle, Bone Mineral Content, TBW, Intra-extracellular water.

LCD Display with 5 digits 20mm (Weight), Multi-line LCD
Display 3 digits 12mm (BMI / Age-Fat),
Keyboard with 20 keys

Made in Italy.
Technical Specifications
Frequencies: 4 bipolar mono-frequency 50 kHz electrodes
Impedance frequency: 50kHz 500uA
Range: 200 ~ 1000O / 0.1O
Capacity: 300 kg
Sensitivity: 100g/0.1%
Age Range: 10 ~ 80 years, increase of 1 year
Size: 450x550xh 880 mm
Platform size: 450x340xh 85 mm
Column size: 100x50xh 750 mm
Weight: 11 kg
Power supply: adapter AC 12V 2A and 7.2V 2000mA recharg. battery
Power supply optional: 6x1.5V AAA batteries
