ADJUSTABLE HEIGHT PATIENT TROLLEY with TR and RTR
Category:
browse:
ADJUSTABLE HEIGHT PATIENT TROLLEY with TR and RTR
Stock availability:
1
Product Code:
44790
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: I
RDM (NSIS):
2269838
CND:
V0899
EAN/UPC:
8023279447903

declaration
of conformity

technical sheet
test report

operator
manual

download
catalogue page

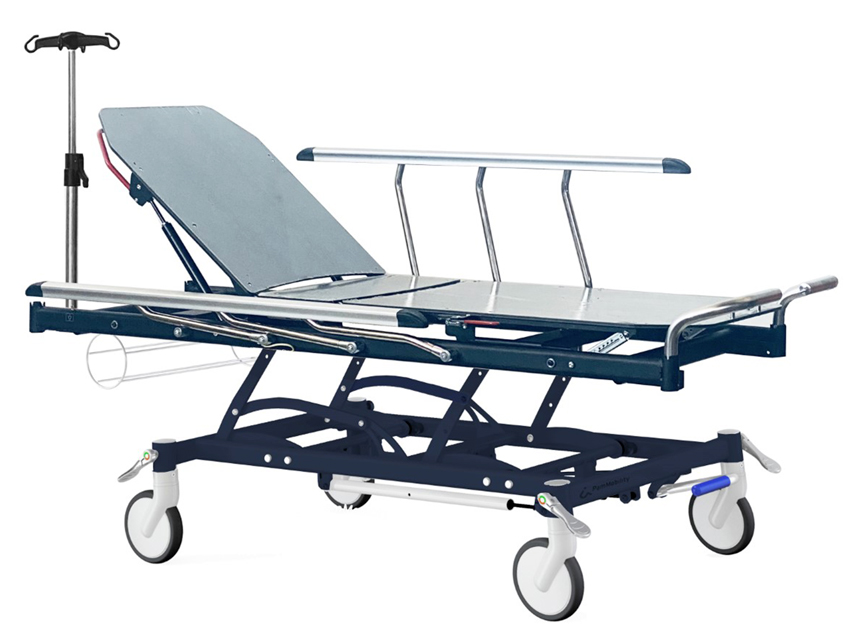

HEIGHT ADJUSTABLE PATIENT TROLLEY - TR and RTR

Two-section variable-height stretcher with adjustable backrest by gas devices up to 65°. Top made of radiolucent Hpl, steel frame and long leg section made of painted steel.
Possibility of insertion of cylinder basket and four IV poles, two in the head and two in the foot area.
Side bumpers on the frame for protection of the stretcher.
Two collapsible handles on the head side and one on the foot side, all in painted steel, to provide a safe and comfortable grip.
Adjustable height 530 to 890 mm by a large pedal located in the foot area.
All steel parts are epoxy powder coated.
Manual Trendelenburg and Reverse Trendelenburg (±18°) by lever located at the foot side of the stretcher.
Sturdy folding steel side rails with compass movement.
Four castors Ø 200 mm with simultaneous brake controlled by centralized pedal, directional ones at the head.

Made in Italy.
Technical Specifications
Overall size: 2000x825xh 530-890 mm
Table size: 1900x630 mm
Max. backrest inclination: 65°
Safe working load: 230 kg
Norms: 93/42/EEC; 2007/47/EC, Medical Device Class I
