GIMA-THER TENS/EMS - 2 channels - 36 programmes
Category:
browse:
GIMA-THER TENS/EMS - 2 channels - 36 programmes
Stock availability:
156
Product Code:
28406
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
2230535
CND:
Z120601
EAN/UPC:
8023279284065
PARAF:
986873469
CH-REP:
No
UK-REP:
No

certificates

declaration
of conformity

box
label

ISO certificates

operator
manual

download
catalogue page

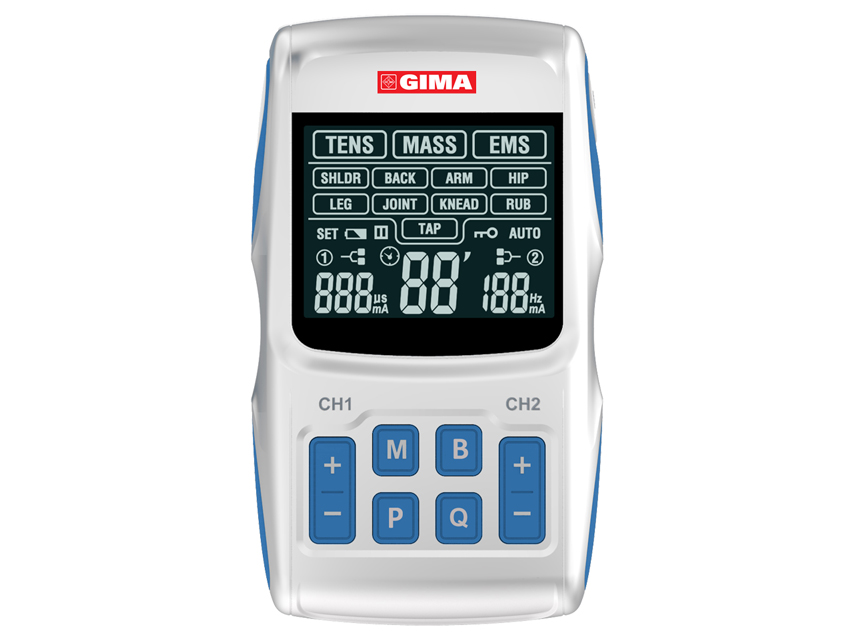

GIMA-THER TENS - 36 medical programmes

Gima-Ther is a dual channel stimulator with 3 basic functions: TENS, EMS and MASSAGE.

It has 36 programmes (18 TENS, 15 EMS and 3 Massage) and applies electric currents in the low-frequency range for therapy. It helps with blood circulation and to relieve chronic and postoperative pains.

Recommended for muscle training and also for body building.
Electric impulses are transcutaneous and transmitted to nerves, muscle fibers or tissues through electrode. The intensity of the dual channel can be adjusted independently and can be applied individually to one body part.

Supplied with 4 pads 50x50 mm, 2 output cables, 4 AAA batteries and instruction manual (GB, FR, IT, ES, DE).
Technical Specifications
36 PROGRAMMES - TENS/EMS/MASSAGE:
TENS (Transcutaneous Electrical Nerve Stimulation)
Body parts: shoulder, low back, joint, hip, arms, legs
Treating programme: 18 programmes
Treating time: 30 minutes

EMS (Electrical Muscle Stimulation)
Body parts: shoulder, back, limb and hip
Treating programme: 15 programmes
Treating time: 28, 30 and 32 minutes

MASSAGE
Treating programme: 3 programmes
Treating time: 30 minutes

Technical specifications:
Channel 2
Waveform: Bi-phase square-wave pulse
Output voltage: Max. 120 Vpp (at 1000 ohm load)
Output current: Max. 60 mA (at 1000 ohm load)
Output intensity: 0 to 60 levels, adjustable
Output characteristics: Constant Current (CC)
Power supply: 6.0 V D.C., 4x AAA batteries 1.5 V
Display: Large backlit LCD
Dimension - Weight: 120.5x69.5x27 mm - 104 g
Classification: BF type applied part, internal power equipment, IP22
Norms: IEC60601-1, IEC60601-1-2, IEC60601-1-11, IEC60601-2-10, IEC62304
