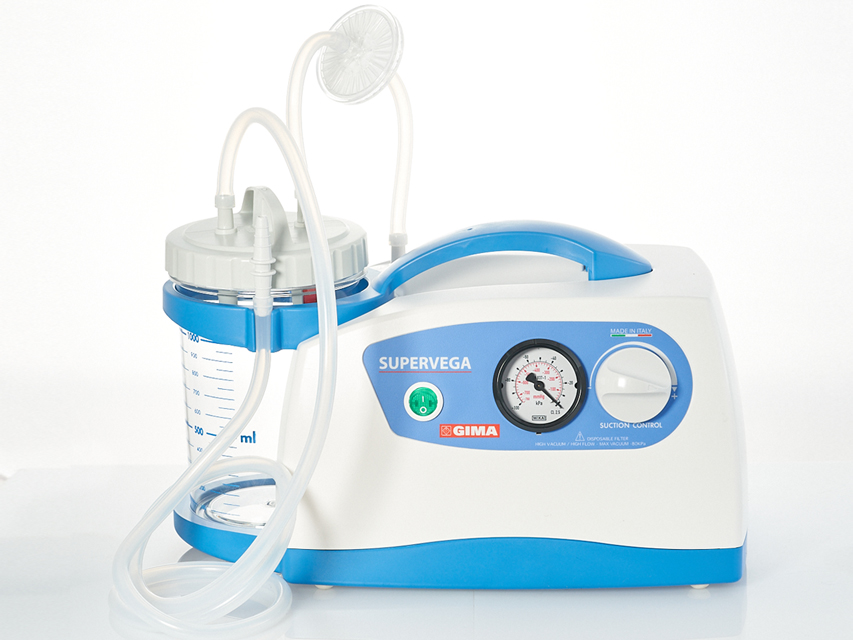

VEGA SUCTION UNIT
Model: Super Vega 1l Operating Power: 220-230 V - 50/60 Hz Flow: 40 l/m Manual: GB, FR, IT, ES, PT, DE, CZ, LV, EE, FI, SI, BG
A line of stylish, compact, and reliable aspirators for small surgery. Silent, high-flow, and maintenance-free pumps allow long product life and durability. Recommended for nasal aspiration, oral aspiration, and tracheal aspiration of body fluids (mucus, catarrh, or blood) in adults or children.
Equipped with continuously adjustable vacuum regulator and vacuum indicator Unbreakable 1,000 ml Makrolon® jar, autoclavable at 121°C Safety float control valve to prevent overflow Optional APEC® jar autoclavable at 143°C Manufactured with an electric and thermally insulated plastic body
Flovac® autoclavable jars and disposable collection system: in addition to the standard autoclavable jar, a disposable collection system is available, composed of a rigid reusable jar, a polyethylene disposable liner with hermetically sealed cover, and a hydrophobic, antireflux, antibacterial filter operating as an overflow valve.
Made in Italy.
Technical Specifications
Operating Voltage: 220-230 V - 50/60 Hz, 110 V - 60 Hz (on request) or 110-127 V - 60 Hz Power Consumption: 110 VA Bottle Capacity: 1,000 ml Flow (air litres/min): 40 l/min Max Suction: -0.80 bar (600 mm/Hg) Operating Cycle: Continuous Noise Level: 60.5 dBA Size - Weight: 35x21x18 cm - 3.6 kg Norms: EN 60601-1-1, EN 60601-1-2, EN 60601-1-11, 93/42/EEC
Standard accessories
Autoclavable jar (1 l) with overflow valve system Antibacterial and hydrophobic filter Set of silicone tubes 6x10 mm Conical connector for probes
