SUPER-VEGA SUCTION UNIT 1 liter jar GB,NL,DK,SE,LT,PL,SK,HU,RO,HR,GR,Arabic
Category:
browse:
SUPER-VEGA SUCTION UNIT 1 liter jar GB,NL,DK,SE,LT,PL,SK,HU,RO,HR,GR,Arabic
Stock availability:
0
Product Code:
28230
Unit of sale:
1 pc.
Minimum order:
1

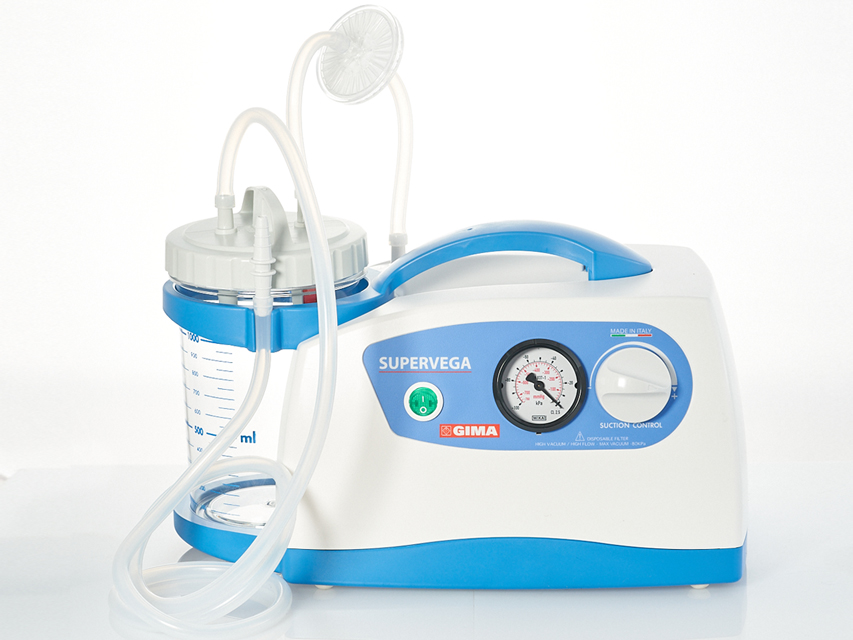

VEGA SUCTION UNIT

Model: Super Vega 1l
Operating Power: 220-230 V - 50/60 Hz
Flow: 40 l/m
Manual: GB, NL, DK, SE, LT, PL, SK, HU, RO, HR, GR, Arabic

A line of stylish, compact, and reliable aspirators for small surgery. Silent, high-flow, and maintenance-free pumps allow long product life and durability. Recommended for nasal aspiration, oral aspiration, and tracheal aspiration of body fluids (mucus, catarrh, or blood) in adults or children.

Equipped with continuously adjustable vacuum regulator and vacuum indicator
Unbreakable 1,000 ml Makrolon® jar, autoclavable at 121°C
Safety float control valve to prevent overflow
Optional APEC® jar autoclavable at 143°C
Manufactured with an electric and thermally insulated plastic body

Flovac® autoclavable jars and disposable collection system: in addition to the standard autoclavable jar, a disposable collection system is available, composed of a rigid reusable jar, a polyethylene disposable liner with hermetically sealed cover, and a hydrophobic, antireflux, antibacterial filter operating as an overflow valve.

Made in Italy.
Technical Specifications
Operating Voltage: 220-230 V - 50/60 Hz, 110 V - 60 Hz (on request) or 110-127 V - 60 Hz
Power Consumption: 110 VA
Bottle Capacity: 1,000 ml
Flow (air litres/min): 40 l/min
Max Suction: -0.80 bar (600 mm/Hg)
Operating Cycle: Continuous
Noise Level: 60.5 dBA
Size - Weight: 35x21x18 cm - 3.6 kg
Norms: EN 60601-1-1, EN 60601-1-2, EN 60601-1-11, 93/42/EEC
Standard accessories
Autoclavable jar (1 l) with overflow valve system
Antibacterial and hydrophobic filter
Set of silicone tubes 6x10 mm
Conical connector for probes

In the same family are available
"ASPEED 2" SUCTION ASPIRATOR - 230V double pump
"ASPEED 2" SUCTION ASPIRATOR - 230V single pump
"ASPEED 3" SUCTION ASPIRATOR - 230V single pump - 1 l
"SUPER-VEGA" SUCTION ASPIRATOR 1 liter jar with footswitch
"SUPER-VEGA" SUCTION UNIT 1 liter jar - 110V-60Hz
ASPEED 3 SUCTION ASPIRATOR - 230V single pump - 2 l
ASPEED SUCTION ASPIRATOR - 230V double pump
ASPEED SUCTION ASPIRATOR - 230V single pump
GIMA MAMILAT - breast pump 230V - 50/60Hz
MEMBRANE KEYBOARD for 28198
SPARE KIT MAMILAT 2 bottles + filter
SUPER-VEGA SUCTION UNIT 1 liter jar GB,FR,IT,ES,PT,DE,CZ,LV,EE,FI,SI,BG
SUPER-VEGA SUCTION UNIT 1 liter jar GB,NL,DK,SE,LT,PL,SK,HU,RO,HR,GR,Arabic
SUPER-VEGA SUCTION UNIT 2 liter jar GB,FR,IT,ES,PT,DE,CZ,LV,EE,FI,SI,BG
TROLLEY for VEGA and SUPERVEGA
VEGA SUCTION UNIT 1 liter jar GB,FR,IT,ES,PT,DE,CZ,LV,EE,FI,SI,BG
VEGA UNO SUCTION UNIT 1 liter jar GB,FR,IT,ES,PT,DE,CZ,LV,EE,FI,SI,BG
