SUPERVEGA EVO BATTERY SUCTION UNIT for ambulance
Category:
browse:
SUPERVEGA EVO BATTERY SUCTION UNIT for ambulance
Stock availability:
6
Product Code:
28182
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
2059698
CND:
Z120105
EAN/UPC:
8023279281828
GMDN:
36777
CH-REP:
No
UK-REP:
No

certificates

declaration
of conformity

box
label

ISO certificates

operator
manual

download
catalogue page

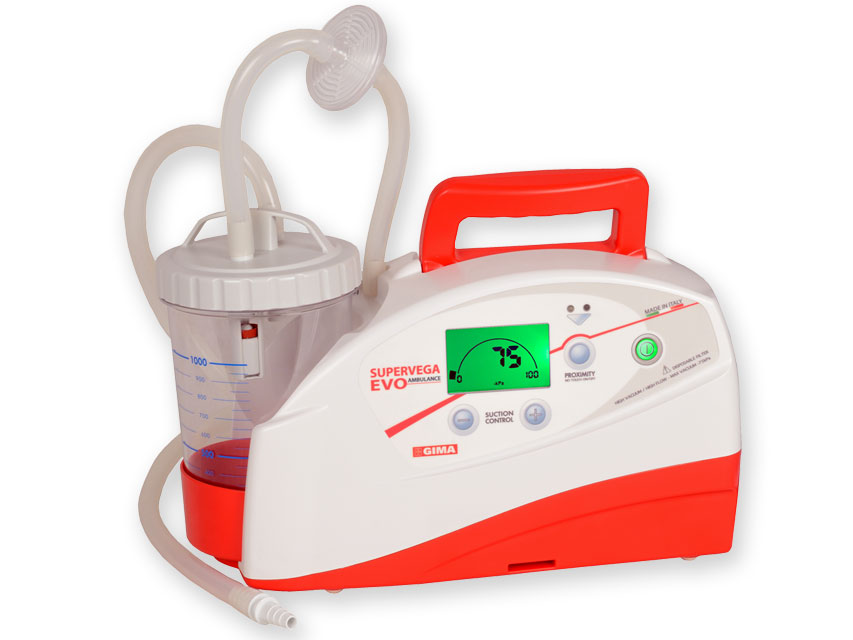

Supervega evo ambulance battery aspirator

Supervega 118 and Supervega Evo are electric medical and portable devices for nasal, oral and tracheal aspiration of body fluids in children or adults.
Two or three options of operation: by 100-240 V power feeding, 12 V car adapter or internal rechargeable battery.

Equipped with a long-life brushless motor eliminating any type of smell and coal residuals.

Large LCD
Clear reading of vacuum values along with soft keys for vacuum adjustment increase the accuracy of aspiration.

FEEDBACK system
It controls and manages the power of aspiration, providing a long autonomy to the lightweight lithium-ion battery and quite noise level during operation.

PROXIMITY function: NO-TOUCH ON/OFF
This function prevents and avoids cross-contamination inbetween patients.

Various options of jar
Standard autoclavable (121°C) Makrolon® polycarbonate, optional FLOVAC® disposable liners or autoclavable (143°C) APEC® polycarbonate.

The ambulance wall bracket is 10g dynamically tested according to the EN 1789:2007 European norm.

Made in Italy.
Technical Specifications
• Motor: Oil-less and maintenance-free piston pump
• Power:
- Internal rechargeable Lithium battery (14.8 V - 5.2 A) - Autonomy 70 min
• Recharge from support bracket
• Max vacuum (adjustable): -0.75 Bar; -75 kPa; -563 mmHg
• Max free air flow rate: 26 l/m
• Size: 35x19x15 cm Weight: 2.7 kg
• Duty cycle: non stop operation (by mains or 12 V only)
• Noise level min/max: 46.7/61.8 dBA
Standard accessories
Polycarbonate jar 1,000 ml with overflow valve system
Antibacterial filter
Suction catheter
Silicone tube set with conical connector
Support bracket for ambulance 20x16x16 cm
Carrying bag
User Manual GB, FR, IT, DE, ES

In the same family are available
"SUPER VEGA" 36 BATTERY SUCTION UNIT
BATTERY for SUPERTOBI (28240) and SUPERVEGA 16 l (28243 up to S.N. 2141) - spare
COVER + VALVE for 28185/6 - spare
COVER + VALVE for 28187 - spare
DISPOSABLE CONTAINER 300 ml with filter
MINI ASPEED BATTERY PRO - metal case
MINI ASPEED EVO BATTERY SUCTION 1 l
MINI ASPEED EVO BATTERY SUCTION 1 l with ambulance bracket
MINI ASPEED EVO BATTERY SUCTION 2 l with ambulance bracket
POWER ADAPTER
SPENCER JET COMPACT 300D PORTABLE SUCTION UNIT
SUPER VEGA BATTERY SUCTION UNIT 16 l/min with footswitch - plastic case
SUPER VEGA BATTERY SUCTION UNIT 36 l/min with footswitch - plastic case
SUPER VEGA BATTERY SUCTION UNIT- plastic case
SUPERVEGA 118 BATTERY SUCTION UNIT 230V
SUPERVEGA 118 BATTERY SUCTION UNIT for ambulance
SUPERVEGA EVO BATTERY SUCTION UNIT 230V
SUPERVEGA EVO BATTERY SUCTION UNIT for ambulance
