SUPERVEGA EVO BATTERY SUCTION UNIT 230V
Category:
browse:
SUPERVEGA EVO BATTERY SUCTION UNIT 230V
Stock availability:
4
Product Code:
28183
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
2059697
CND:
Z120105
EAN/UPC:
8023279281835
GMDN:
36777
CH-REP:
No
UK-REP:
No

certificates

declaration
of conformity

box
label

ISO certificates

operator
manual

download
catalogue page

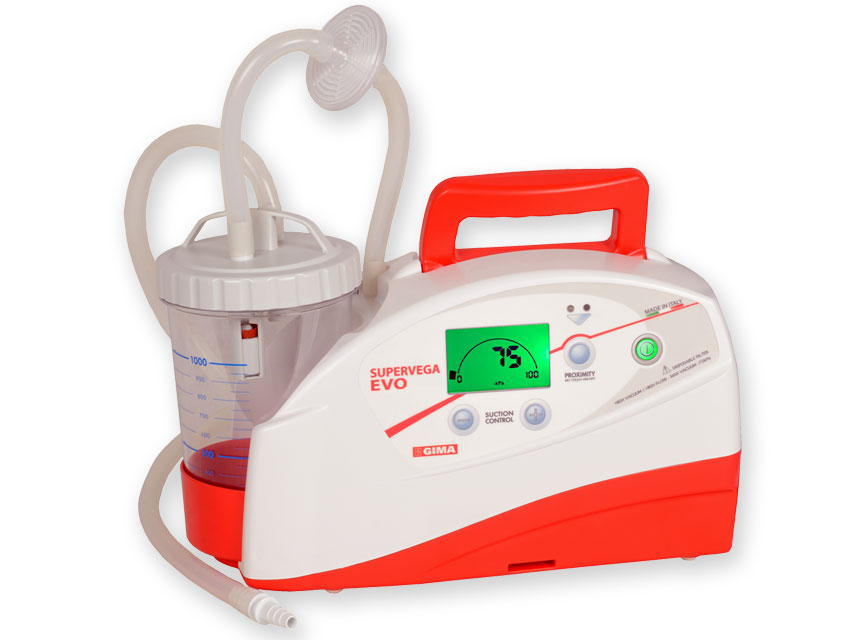

Supervega evo battery aspirator

Supervega 118 and Supervega Evo are electric medical and portable devices for nasal, oral and tracheal aspiration of body fluids in children or adults.
Two or three options of operation: by 100-240 V power feeding, 12 V car adapter or internal rechargeable battery.

Equipped with a long-life brushless motor eliminating any type of smell and coal residuals.

Large LCD
Clear reading of vacuum values along with soft keys for vacuum adjustment increase the accuracy of aspiration.

FEEDBACK system
It controls and manages the power of aspiration, providing a long autonomy to the lightweight lithium-ion battery and quite noise level during operation.

PROXIMITY function: NO-TOUCH ON/OFF
This function prevents and avoids cross-contamination inbetween patients.

Various options of jar
Standard autoclavable (121°C) Makrolon® polycarbonate, optional FLOVAC® disposable liners or autoclavable (143°C) APEC® polycarbonate.

In compliance with EN 60601-1-11 for use in the home healthcare environment and carries IP22 degree protection.

Made in Italy.
Technical Specifications
• Motor: Oil-less and maintenance-free piston pump
• Power:
- Internal rechargeable Lithium battery (14.8 V - 5.2 A) - Autonomy 70 min
- Car-ambulance adapter (12 V - 4 A)
- AC/DC adapter 110-240 V, 50-60 Hz
• Max vacuum (adjustable): -0.75 Bar; -75 kPa; -563 mmHg
• Max free air flow rate: 26 l/m
• Size: 35x19x15 cm Weight: 2.7 kg
• Duty cycle: non stop operation (by mains or 12 V only)
• Noise level min/max: 46.7/61.8 dBA
Standard accessories
Polycarbonate jar 1,000 ml with overflow valve system
Antibacterial filter
Suction catheter
Silicone tube set with conical connector
Universal power adaptor (100-240V - 50/60 Hz)
12V car adapter
User Manual GB, FR, IT, DE, ES
