SUPERVEGA 118 BATTERY SUCTION UNIT for ambulance
Category:
browse:
SUPERVEGA 118 BATTERY SUCTION UNIT for ambulance
Stock availability:
15
Product Code:
28240
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
1744520
CND:
Z120105
EAN/UPC:
8054619104507

certificates

declaration
of conformity

ISO certificates

operator
manual

download
catalogue page

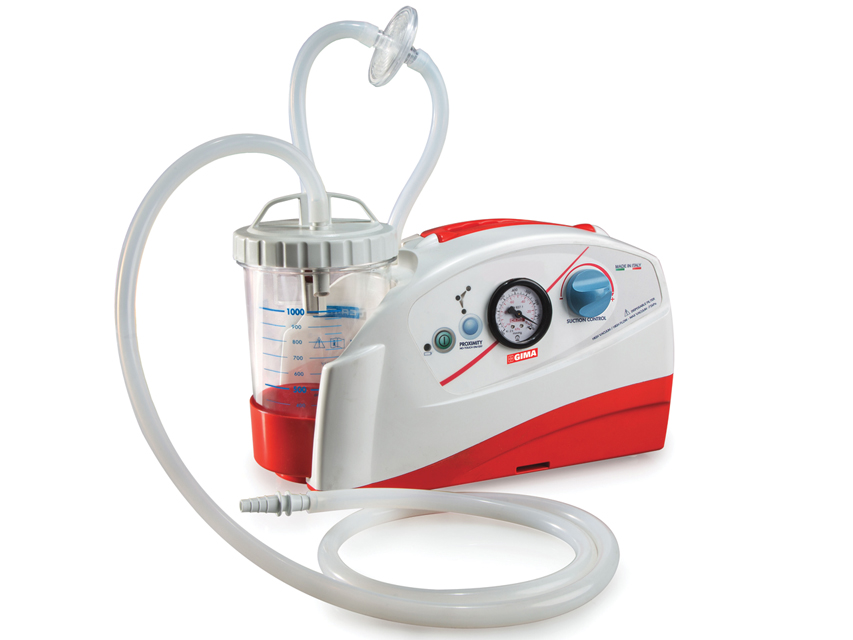

Supervega 118 ambulance battery aspirator

Supervega 118 and Supervega Evo are electric medical and portable devices for nasal, oral and tracheal aspiration of body fluids in children or adults.
Two or three options of operation: by 100-240 V power feeding (28183 and 28241 only), 12 V car adapter or internal rechargeable battery.

Equipped with a long-life brushless motor eliminating any type of smell and coal residuals.

PROXIMITY function: NO-TOUCH ON/OFF
This function prevents and avoids cross-contamination inbetween patients.

Various options of jar
Standard autoclavable (121°C) Makrolon® polycarbonate, optional FLOVAC® disposable liners or autoclavable (143°C) APEC® polycarbonate.

The ambulance wall bracket is 10g dynamically tested according to the EN 1789:2007 European norm.

Made in Italy.
Technical Specifications
• Motor: Oil-less and maintenance-free piston pump
• Power:
- Internal rechargeable Lithium battery (14.8 V - 5.2 A) - Autonomy 70 min
• Recharge from support bracket
• Max vacuum (adjustable): -0.75 Bar; -75 kPa; -563 mmHg
• Max free air flow rate: 36 l/m
• Size: 35x19x15 cm Weight: 2.7 kg
• Duty cycle: non stop operation (by mains or 12 V only)
• Noise level min/max: 54.7/68.2 dBA
Standard accessories
Polycarbonate jar 1,000 ml with overflow valve system
Antibacterial filter
Suction catheter
Silicone tube set with conical connector
Support bracket for ambulance 20x16x16 cm
Carrying bag
User Manual GB, FR, IT, DE, ES
