MINI ASPEED EVO BATTERY SUCTION 1 l with ambulance bracket
Category:
browse:
MINI ASPEED EVO BATTERY SUCTION 1 l with ambulance bracket
Stock availability:
17
Product Code:
28283
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II B
RDM (NSIS):
1758469
CND:
Z120105
EAN/UPC:
8033717011306
CH-REP:
No
UK-REP:
No

certificates

declaration
of conformity

box
label

ISO certificates

operator
manual

download
catalogue page

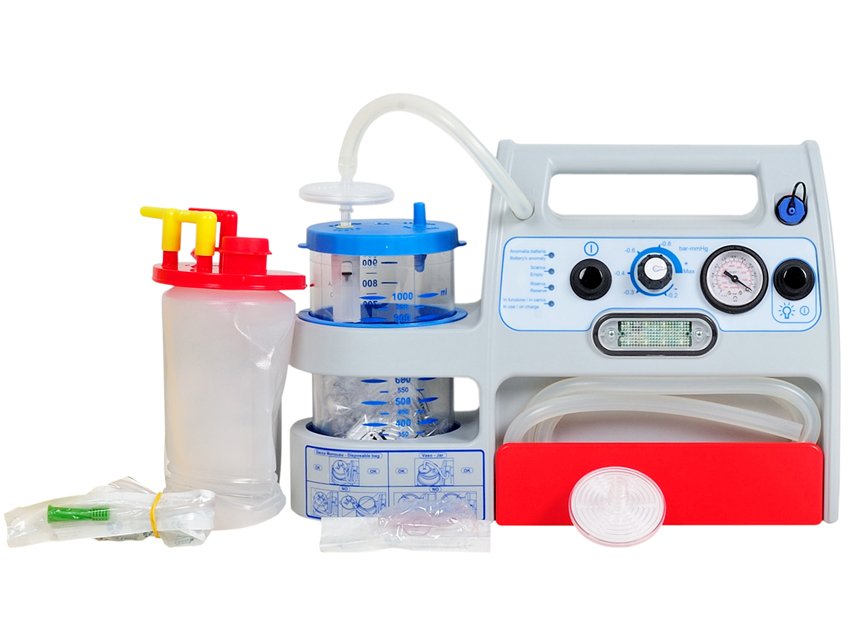

MINIASPEED EVO BATTERY SUCTION - 1 l for ambulance

Professional portable high flow - high vacuum aspirators with integrated rechargeable batteries.
It works at 12 V power supply with batteries or directly by mains supply, continuously at 110-230 V while recharging batteries.
Up to 45 minutes of autonomy with fully charged battery.

Made in Italy.
Technical Specifications
Operating voltage: with internal battery DC 12 V - 4 Ah with power supply 100÷240 V ~ 50/60 Hz - 14 VDC 4,28A
Power consumption: max 50 W
Battery autonomy: about 45 minutes, recharging time approx 6 hours
Size: 134x378xh 263 mm
Weight: 5 kg
Bottle capacity: 1,000 ml
Flow: 30 air litres/min
Noise level: 65 dBA at 1 m
Operating cycles: continuous (45 min battery autonomy)
MAX vacuum: 0 ± 85 kPa
Norms: MDD 93/42/EEC (Class lIa - annex IX) EN60601-1(IEC 60601-1) / EN60601-1-2 (IEC 60601-1-2)
UNI EN ISO 10079-1/ UNI CEI EN ISO 14971
Degree of protections against ingress of liquids: IP21
Class IIa - Type BF
Standard accessories
Autoclavable 1 l jar with safety valve
2 bacterial hydrophobic filters
Sterile disposable cannula CH14
User manual: GB, IT, FR, DE, ES
Sterile disposable manual regulator
Power supply cord - 2 m
Disposable silicone liner 1 l
Shoulder carrying bag
Wall bracket for ambulance
Multivoltage battery charger
Silicone tubing set Ø 6x12 mm

In the same family are available
"SUPER VEGA" 36 BATTERY SUCTION UNIT
BATTERY for SUPERTOBI (28240) and SUPERVEGA 16 l (28243 up to S.N. 2141) - spare
COVER + VALVE for 28185/6 - spare
COVER + VALVE for 28187 - spare
DISPOSABLE CONTAINER 300 ml with filter
MINI ASPEED BATTERY PRO - metal case
MINI ASPEED EVO BATTERY SUCTION 1 l
MINI ASPEED EVO BATTERY SUCTION 1 l with ambulance bracket
MINI ASPEED EVO BATTERY SUCTION 2 l with ambulance bracket
POWER ADAPTER
SPENCER JET COMPACT 300D PORTABLE SUCTION UNIT
SUPER VEGA BATTERY SUCTION UNIT 16 l/min with footswitch - plastic case
SUPER VEGA BATTERY SUCTION UNIT 36 l/min with footswitch - plastic case
SUPER VEGA BATTERY SUCTION UNIT- plastic case
SUPERVEGA 118 BATTERY SUCTION UNIT 230V
SUPERVEGA 118 BATTERY SUCTION UNIT for ambulance
SUPERVEGA EVO BATTERY SUCTION UNIT 230V
SUPERVEGA EVO BATTERY SUCTION UNIT for ambulance
