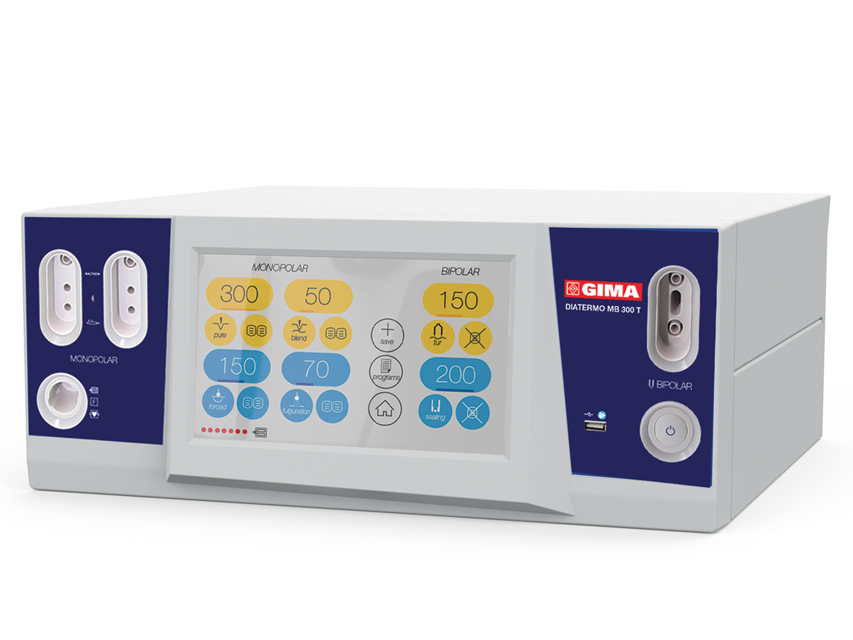

DIATERMO MB 300 TOUCH
Category: Hospital electrosurgery units next >> << previous browse:


	Stock availability: 4 Product Code: 30695 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II B RDM (NSIS): 2682924 CND: Z12010902 EAN/UPC: 8033638325322 GMDN: 44776 CH-REP: No UK-REP: Yes
certificates Download certificates DIATERMO MB 300 TOUCH CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity DIATERMO MB 300 TOUCH English Italian box label Download box/label DIATERMO MB 300 TOUCH Box Label ISO certificates Download ISO 9001/13485 certificates DIATERMO MB 300 TOUCH iso 9001/13485 certificates operator manual Download operator manual DIATERMO MB 300 TOUCH Italian download catalogue page

New generation of electrosurgery, that allows two surgeons to work simultaneously.

A radiofrequency generator suitable for microsurgery and precise surgery in monopolar and bipolar modality.

The simplicity of new Diatermo MB 300 TOUCH allows you to use it without learning time, resulting in time savings.
The initial setup and setting adjustments, during a surgery, can be easily selected through the large touchscreen.

Performance, usability, design and reliability
- simultaneous activation of monopolar and bipolar
- contemporary dual monopolar
- contemporary dual bipolar
- power control depending on impedance
- activating power with pedal and / or handpiece
- neutral-patient electrode contact control
- cutting function under saline solution TUR
- modular cut in wet conditions BLEND
- vessel sealing to clamp vessels up to 7 mm
- possibility of use for minimally invasive surgery
- monopolar / bipolar functions
- auto-start / auto-stop in bipolar modality
- adjusting sound intensity

An intuitive and logic work environment
Diatermo MB 300 TOUCH have a particularly basic and intuitive work environment.
Horizontal matching between monitors, RGB light indications and connectors provide a clear and easy-to-read overview.
The accessory sockets are laterally placed, allowing you to control important information without interference of connectors and attached accessory cables.
The large 9“ capacitive touchscreen, designed with a sleek flat front, ensures faster and more efficient cleaning in the operating room.

State of the art device
Highly professional surgery with ergonomic and safety solutions.
Neutral electrode connection is constantly monitored: if a split neutral plate is used, the device will monitor the contact between the patient and the electrode.
The possibility to switch the functions and set the power supply from the handpiece, allows surgical procedures without divert attention from operation field.

Software
Developed to provide a simple, functional and intuitive work experience.
Through one finger touch, you can choose from a white or black screen, how to customize and to save your work settings, change the cut or coagulation power and manage each device function.

Recommended for: DERMATOLOGY, ENDOSCOPY, GASTROENTEROLOGY, GENERAL SURGERY, GYNECOLOGY, NEUROSURGERY, ORTHOPAEDICS, OTORHINOLARYNGOLOGY, PAEDIATRIC SURGERY, PLASTIC SURGERY, PNEUMOLOGY, UROLOGY, VETERINARY

Usable for: ORTHOPAEDICS, THORAX SURGERY, TRANS URETHRAL RESECTION (TUR), VASCULAR SURGERY

Made in Italy.

Maximum output power PURE CUT: 300 W - 300 Ohm
Maximum output power BLEND: 200 W - 300 Ohm
Maximum output power ENHANCED: 200 W - 300 Ohm
Maximum output power FORCED COAG: 120 W - 150 Ohm
Maximum output power SOFT COAG: 120 W - 200 Ohm
Maximum output power BIPOLAR TUR: 250 W - 200 Ohm
Maximum output power BIPOLAR CUT: 150 W - 100 Ohm
Maximum output power BIPOLAR COAG: 150 W - 50 Ohm
Maximum output power BIPOLAR SEALING: 250 W - 50 Ohm
Maximum output power FULGURATION: 80 W - 500 Ohm
Working frequency: 360 kHz
Patient circuit: F
Selectable input voltage: 100-240 Vac
Mains frequency: 50-60 Hz
Electrical input voltage: 1000 VA
Size WxHxD: 450 x 200 x 420 mm
Weight: 15.5 kg

Controls: Patient/Plate circuit monitoring, Output power monitoring, Self check control, HF leakage currents control, Compensation of mains fluctuation

Safety: EN60601-1, EN60601-1-2, EN60601-2-2, Electrical Class: I CF, MDD 93/42/EC Class: II b
