GIMANORD LED PLUS MAGNIFYING LIGHT - desk
Category:
browse:
GIMANORD LED PLUS MAGNIFYING LIGHT - desk
Stock availability:
26
Product Code:
30716
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: I
RDM (NSIS):
2391800
CND:
Z12010702
EAN/UPC:
8023279307160
CH-REP:
Yes
UK-REP:
Yes

declaration
of conformity

ISO certificates

operator
manual

download
catalogue page

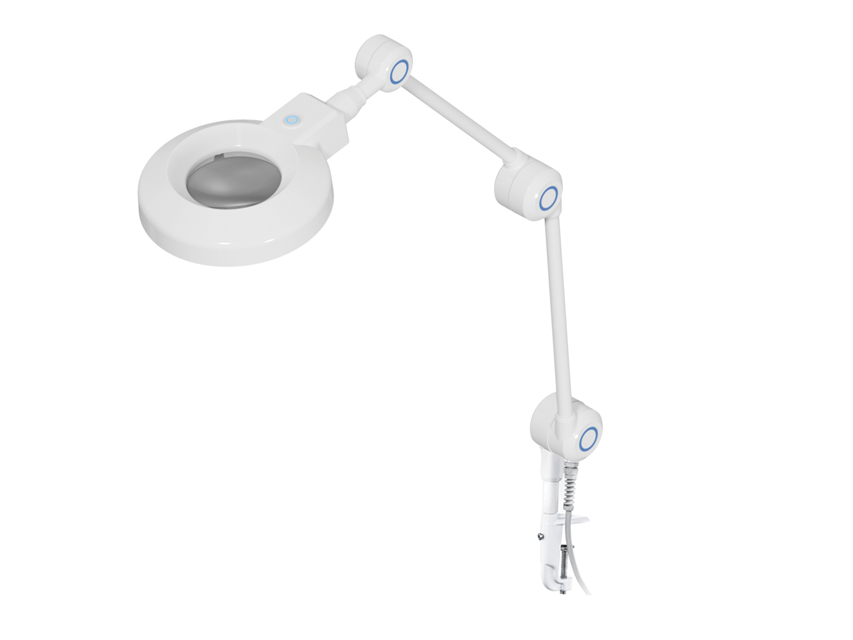

GIMANORD PLUS - with table clamp

This model features a biconvex magnifying lens in optical glass with Ø 120 mm. The cold LED light allows prolonged use, without causing any eyesight problem. Polycarbonate screen for protection of the light source. Suitable for dermatology use. Medical device Class I.

Design
The new design makes the lamp extremely easy to use and manoeuvre, with an additional rotation of the reflector.

Touch control
Touch button allows to adjust light intensity from 4% to 100% with a smooth touch.

Interchangeable plugs
The transformer, integrated in the plug for a lighter and smooth movements of the arm structure, is supplied with interchangeable plugs (UK, US, EU).

QR Manual: GB, FR, IT, ES, PT
Made in Italy.
Technical Specifications
Light intensity at 0.5 m (Ec) 2,250 lux
Colour temperature 5,370 K
Colour rendering index (CRI) 95 Ra
R9 =90
Operating voltage 100-240 V - 50/60 Hz
Absorbed power 16.5 W
Light head diameter 23 cm
Average life >60.000 hours
Norms IEC-60601-1, IEC-60601-2-41, EU 2017/745
