SPIROBANK II SMART + SOFTWARE
Category: Spirometers next >> << previous browse:


	Stock availability: 0 Product Code: 33512 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II A RDM (NSIS): 2564394 CND: Z12150102 EAN/UPC: 8023279335125
certificates Download certificates SPIROBANK II SMART + SOFTWARE CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity SPIROBANK II SMART + SOFTWARE declaration of conformity box label Download box/label SPIROBANK II SMART + SOFTWARE Original Product Label ISO certificates Download ISO 9001/13485 certificates SPIROBANK II SMART + SOFTWARE iso 9001/13485 certificates operator manual Download operator manual SPIROBANK II SMART + SOFTWARE English French Italian Spanish German download catalogue page

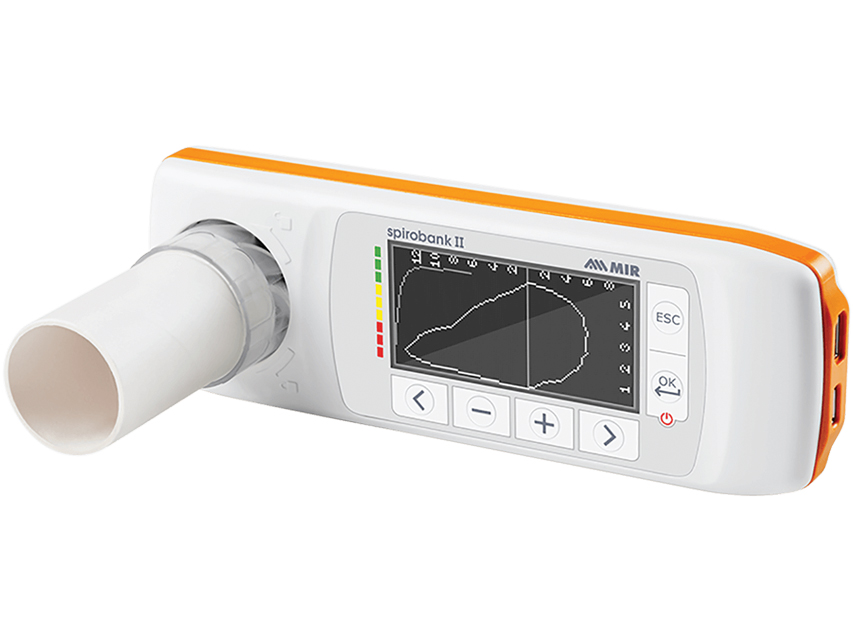

SPIRO BANK II SMART + MIR SPIRO PC SOFTWARE

Spirometer with 10,000 tests memory capacity, monochromatic Lcd display, 6 keys membrane keypad.
Battery power supply (3,7 V-1100 mA lithium) with an autonomy of approx. 50 hours of continuous use, rechargeable with USB port.

- cable (USB 2.0) or wireless (Bluetooth 4.0) connection
- internal temperature sensor for automatic BTPS conversion
- high resolution graphic display
- automatic record of a whole spirometry session including best test

Supplied with USB cable, carrying case, manual GB, IT (FR, ES, PT, DE, DK, PL, SE, CZ available on www.gimaitaly.com), re-usable turbine and MIR Spiro software.

Weight 140 g
Size 55x160x25 mm
160x80 pixel display

Made in Italy.

MIR SPIRO PC software
The next-generation software for Spirometry and Oximetry.
It complies with ATS/ERS 2019. Powerful and advanced, provides a wide range of features in a new graphic and customizable settings. New user interface, much more user intuitive and easier interoperability for EHR/ EMR integration. Automatic updates provide the latest version of software.

MIR Spiro PC Software one year licence subscription included with all MIR spirometers and oximeter.
MIR Spiro software licence has one-year validity
Annual Platinum subscription renewal on mymir.spirometry.com

TEST:
FVC Pre/Post, SVC Pre/Post
Oximetry Spot
24h oximetry holter
MVV Pre/Post
Oximetry 6MWT, Oximetry Sleep

PATIENT MANAGEMENT:
New patient / Patient List / Patient Search
Patient Session Summary
Patient Risk factors/Symptoms
Test cronology comparison
Worklist

PRINTOUTS:
FVC Printout STD and ATS 2019
FVC Printout STD NIOSH/OSHA
Oximetry Calibration Printout and VC Printout
Quality Grade Printout

DATA MANAGEMENT:
Data sharing/Interoperability
Data import from Legacy db
Data Import from third parties sfw db
Data Export in Excel/csv/ATS/HL7/GDT
Data Recovery
Emphysema Severity Index (ESI)
ESI Method Artificial Intelligence

PC SYSTEM REQUIREMENTS:
Windows: 8, 10, 11 (all 32, 64 bit); RAM 1 GB for 32 bit or 2 GB for 64 bit / 1 GHz or faster processor, two or more cores in a 64 bit processor / 1 GB free hard disk space
Mac iOS: operating system from 10.13; RAM 2 GB (recommended 4 GB) / 1 GB free hard disk space
Connection: USB port or Bluetooth low energy
Multilingual software: GB, FR, IT, ES, PT, DE, PL, HU, RO, SE, NL, CZ, LV, TR, UA, GE, RU, CN, JP

SPIROMETRY
Measured parameters FVC, FEV1, FEV1/FVC%, DTPEF, FEV 0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/ FVC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FEF75-85%, FET, Vext, Lung Age, EVOL, FIVC, FIV1, PIF, FIV1/FIVC%, FIF25%, FIF50%, FIF75%, R50, PIF, IRV, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MVV
Flow sensor bi-directional digital turbine
Flow range ±16L/s
Volume accuracy ±2.5% or 50 mL
Flow accuracy ±5% or 200 mL/s
Dynamic resistance <0.5 cm H2O/L/s
Available tests: FVC, VC, IVC, MVV, PRE - POST
Connectivity USB 2.0, Bluetooth® 4.0
Power supply Lithium-Ion 3.7V, 1100 mAh
