CARDIOPOCKET ECG 3 channel with software
Category: 1-3 channel ECG next >> << previous browse:


	Stock availability: 13 Product Code: 33232 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II A RDM (NSIS): 1449835 CND: Z12050301 EAN/UPC: 8023279332322 UMDNS: 11407
certificates Download certificates CARDIOPOCKET ECG 3 channel with software CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity CARDIOPOCKET ECG 3 channel with software English box label Download box/label CARDIOPOCKET ECG 3 channel with software Product Label Box Label ISO certificates Download ISO 9001/13485 certificates CARDIOPOCKET ECG 3 channel with software iso 9001/13485 certificates operator manual Download operator manual CARDIOPOCKET ECG 3 channel with software English French Italian Spanish Greek Finnish download catalogue page

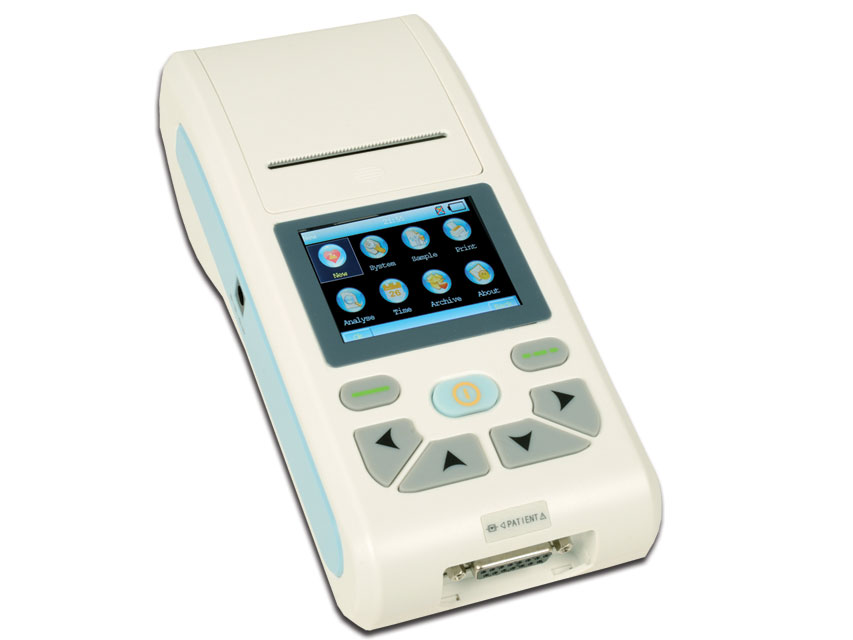

CARDIOPOCKET ECG 3 CHANNELS - with software

12-lead ECG printing ECG waveform with thermal printing system, measuring and diagnosing ECG waveform parameters automatically.

- full-automatic analysis function: auto-analysis and auto diagnosis for routine ECG parameters. It provides measurement results and auto diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+ S(V1)
- 2.83“ colour LCD screen (resolution 320x240) that operates both with touch screen and keys
- high resolution thermal array output system 8 dots/mm (vertical)
- built-in rechargeable lithium detachable battery can continuously work for 4 hours, print up to 90 minutes and 150 ECG
- store up to 100 cases in a SD card
- high-accurate digital filter eliminates baseline drift and distorsion to ECG waveform
- ECG-Sync software to form a ECG workstation

Size: 207 x 96 x 62 mm
Net weight: 500 g

- Power: AC: 100-240 V, 50/60 Hz - DC 12V rechargeable lithium battery 2,000 mAh
- Noise level: =15 µVp-p CMRR: >60 dB, > 100 dB (add filter)
- EMG filter: 25/35 Hz Time constant: =3.2 s
- Frequency response: 0.05-150 Hz (-3 dB - 0.4 dB)
- Patient leakage current: <10 µA
- Recording paper: 50 mm x 20 m, high speed termal paper
- Paper speed: 6.25, 12.5, 25, 50 mm/s ±5%
- Safety standard: IEC class I, type CF defibrillation-proof applied part
- Input mode: floating and defibrillation protection
- Input circuit current: =0.1 µA Input impedance: =50 M O
