EDAN SE-1 ECG - 1 channel with monitor
(Sold up to the end of stock)
Category:
browse:
EDAN SE-1 ECG - 1 channel with monitor
Stock availability:
0
Product Code:
33330
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
213455
CND:
Z12050302
EAN/UPC:
8023279333305
GMDN:
16231
UMDNS:
11413
CH-REP:
No

certificates

declaration
of conformity

box
label

ISO certificates

operator
manual

download
catalogue page

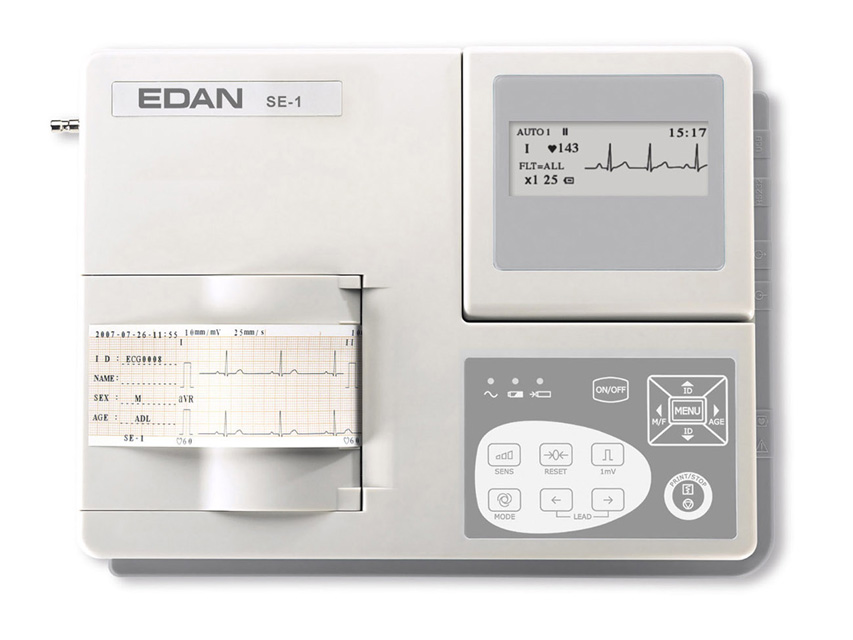

Edan SE-1 Single channel portable ECG.

- foldable LCD screen vivid waveform display
- built-in high resolution thermal printer
- built-in rechargeable Li-ion Battery, AC/DC supply
- complete digital filter, avoid baseline drift, AC,EMG interfere
- automatic baseline adjustement
- auto/manual operation selectable
- lead-off detection and alarm
Technical Specifications
• Lead: Standard 12 leads
• Acquisition mode: Single
• Sensitivity: 2.5, 5, 10, 20, mm/mV
• Input impedance: > 50 MOhm

• Filter:
- EMG Filter 35 Hz (-3 dB)
- AC/DFT Filter 50 Hz / 60 Hz (-20 dB)

• Recording mode: Auto/Manual
• Rhythm lead: Any lead selectable
• Safety standard: IEC I/CF

• Power supply:
- AC: 100 V - 115 V / 220 V - 240 V, 50/60 Hz
- Rechargeable Li-ion battery: voltage 14.8 V
- More than 3 hours continuous operation with battery supply

• Thermal paper: 50 mm x 30 m
• Paper speed: 25 mm/s, 50 mm/s (± 3%)

• Dimension: 300 x 260 x 75 mm
• Weight: 2,3 kg with battery included
• Display: 192 x 64 pixels LCD
• Selectable display language: GB, IT, FR, ES, PL, RU, TR, UA
• Interface: RS 232
Standard accessories
• Patient Cable
• 1 roll of paper
• 4 limb electrodes
• 1 bottle of gel
• Rechargeable battery
• 6 chest limb electrodes
• Manual: GB, IT (on request: FR, ES, PT, TR)
