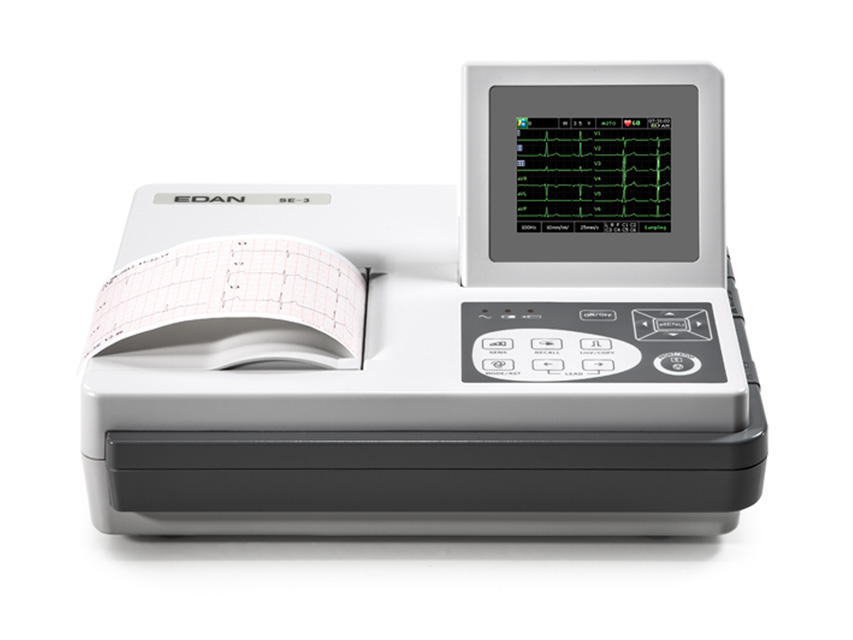

EDAN SE-3 COLOUR ECG - 3 channel with monitor and interpretation
Category: 1-3 channel ECG next >> << previous browse:


	Stock availability: 43 Product Code: 33333 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II A RDM (NSIS): 747407 CND: Z12050301 EAN/UPC: 8023279333336 GMDN: 16231 UMDNS: 11411 PARAF: 903148777 CH-REP: No
certificates Download certificates EDAN SE-3 COLOUR ECG - 3 channel with monitor and interpretation CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity EDAN SE-3 COLOUR ECG - 3 channel with monitor and interpretation English box label Download box/label EDAN SE-3 COLOUR ECG - 3 channel with monitor and interpretation Original Product Label ISO certificates Download ISO 9001/13485 certificates EDAN SE-3 COLOUR ECG - 3 channel with monitor and interpretation iso 9001/13485 certificates operator manual Download operator manual EDAN SE-3 COLOUR ECG - 3 channel with monitor and interpretation English French Italian Spanish Portuguese German Russian Turkish download catalogue page

Edan SE-3 Three channel colour portable ECG with monitor and interpretation.

- foldable LCD screen vivid waveform display
- built-in high resolution thermal printer
- built-in rechargeable Li-ion Battery, AC/DC supply
- complete digital filter, avoid baseline drift, AC,EMG interfere
- automatic baseline adjustement
- auto/manual operation selectable
- lead-off detection and alarm
- interpretation tested by CSE/AHA/MIT database
- 12 Lead simultaneous acquisition
- automatic ECG parameters measurements and analisys
- auto, manual, rhytm off work mode
- support barcode scanner to semplify patient information input
- LAN/25232/USB connetction to PC
- 12 leads grid printing on normal A4 paper by external printer

• Lead: Standard 12 leads
• Acquisition mode: 12 leads simultaneously
• Sensitivity: 2.5, 5, 10, 20, mm/mV
• Input impedance: > 50 MO (10 Hz)

• Filter:
- EMG Filter 25/35/45 Hz off
- DFT Fliter 0.05/0.15/0.25/0.35/0.5/0.67 Hz
- Low pass filter 150/100/75 Hz
- AC Filter on/off

• Recording mode: Auto/Manual/Rhythm/R-R
• Rhythm lead: Any lead selectable
• Safety standard: I EC I/CF

• Power supply:
- AC: 100 V - 115 V / 220 V - 240 V, 50/60 Hz
- Rechargeable Li-ion battery: voltage 14.8 V
- More than 6 hours continuous operation with battery supply

• Data storage: 500 ECG's
• Thermal paper: rolled 80 mm x 20 m / folded 80 x 70 mm x 200 pages
• Paper speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

• Dimension: 290 x 220 x 85 mm
• Weight: 2.5 kg without battery
• Display: 320 x 240 pixels LCD (colour screen)
• Selectable display language GB, IT, FR, ES, RU, PL, CZ, RO, DE, TR, HR, UA

• Interface: Ethernet, RS232, USB
• Barcode scanner support: yes
• Report formats: PDF, Dicom, SCP, XML
