NEO ECG S120 TABLET ECG - SNAP PLUG
Category: 3-6-12 channel ECG next >> << previous browse:


	Stock availability: 100 Product Code: 54229 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II A RDM (NSIS): 2160130 CND: Z12050301 GMDN: 16231 CH-REP: Yes
certificates Download certificates NEO ECG S120 TABLET ECG - SNAP PLUG CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity NEO ECG S120 TABLET ECG - SNAP PLUG English operator manual Download operator manual NEO ECG S120 TABLET ECG - SNAP PLUG English French Italian Spanish Portuguese German Polish Greek Russian

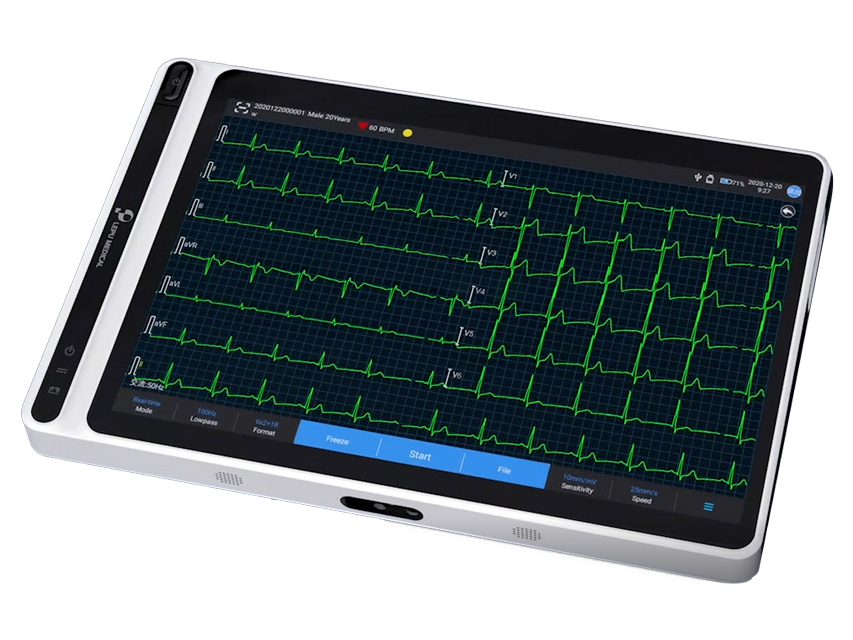

NEO ECG S120 - ECG TA BLET - SNAP PLUG

Light and portable ECG tablets for acquisition and displaying of 9/12 lead waveform, as well as heart rate detection.
7” high resolution colour touch screen, easy to operate.
It can store, preview, review, edit and upload patient data through wireless transmission of ECG data via WiFi and mobile networks.
Patient data can be exported to USB flash disk via USB connector.

- Glasgow algorithm
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling and trigger sampling
- automatic pacing detection and marking
- auto RR analysis, HRV, medicine test, ECG event mode
- files in multiple formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP
- freezing of ECG waveform on the screen
- virtual keyboard and barcode scanning to insert patient information- external DC power supply and built-in rechargeable battery
- multilingual selectable software: GB, FR, IT, ES, PT, DE, GR, PL.

ECG leads: 9,12 synchronous acquisition
A/D resolution: 24 bits
Heart rate range: 30 bpm-300 bpm ± 1
Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, less than ± 5% error
Printing speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, less than ± 3% error
Sampling rate: 32000 samples/sec
Filters: AC (50-60 Hz, off), EMG (25-35-45 Hz off), ADS (0.01-0.05-0.32-0.67 Hz)
Low pass filter: (75-100-150-300 Hz off)

Frequency response: 0.01-350 Hz (+ 0.4-3.0 db)
Minimum detectable signal: 20 µVp-p

Electrical:
Internal noise: = 12.5 µV
Input impedance: = 100 MO (10 Hz) Circuit current: = 10 nA
Calibration voltage: 1 mV ± 2 %
Depolarization voltage: ± 900 mV, ± 5 %
Commode mode rejection: = 140 dB (AC filter on) - = 120 dB (AC filter off)

Amplitude quantisation: 0.95 µV/LSB
Recovery time after discharge: < 10 s
Display: 7" colour touch screen
Size - weight: 19.7 x 11.2 x h 2.6 cm - 0.8 kg
