CONTEC 8000 WIRELESS ECG WORKSTATION - 12 CHANNELS
Category:
browse:
CONTEC 8000 WIRELESS ECG WORKSTATION - 12 CHANNELS
Stock availability:
118
Product Code:
33316
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
1809835
CND:
Z12050301
EAN/UPC:
6945040103455

certificates

declaration
of conformity

ISO certificates

operator
manual

download
catalogue page

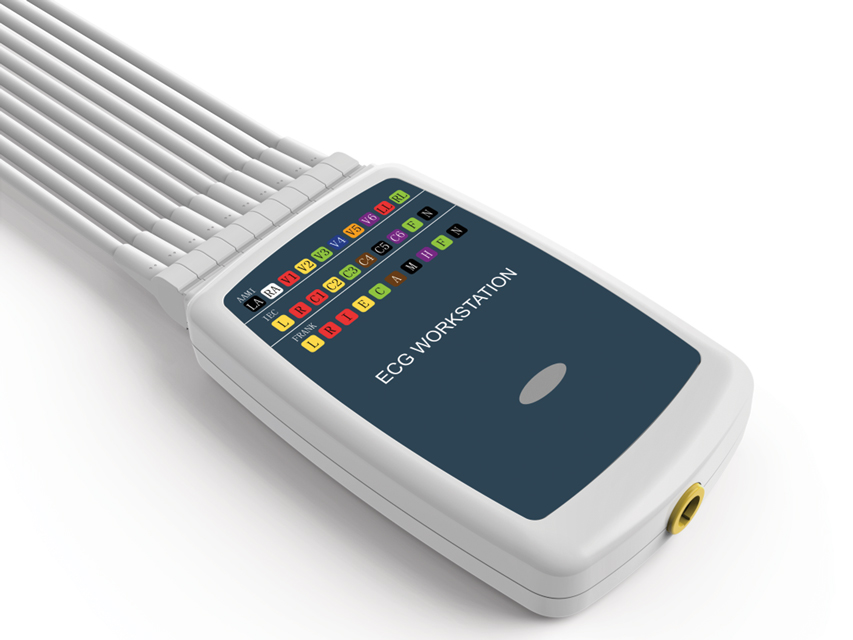

CONTEC 8000 WIRELESS ECG WORKSTATION

Compact and portable device with an advanced ECG analysis algorithm which ensures reliable detection of arrhythmia.

High sampling frequency (1000Hz) ensures correct waveform, high resolution display and printout. It includes wireless transmission of data to a PC in order to analyse, manage and save patients’ reports.

It acquires multiple functions including: 12-lead ECG collection, frequency cardiogram, high frequency ECG, QT internal dispersion analysis, Heart rate variability analysis, Pacing ECG analysis, Myocardium ischemia analysis, Heart rate turbulence analysis, Vectorcardiogram, Timed Vectorcardiogram and Ventricular late potential analysis.

Built-in rechargeable lithium battery, continuous working for more than 7 h.
Technical Specifications
Lead: standard 12-lead
Input mode: floating and defibrillation protection
CMRR: > 60dB, >100dB (add filter)
Time constant: = 3.2s
Patient leak current: < 10 µA
Calibration voltage: 1mV
Sampling: frequency: up to 1000Hz
Accuracy: up to 24-bit
Input circuit current: = 50nA
Input impedance: = 50MO
Noise level: = 15µVp-p
Frequency response: 0.05~150 Hz (-3 ~ + 0.4dB)
Polarizing voltage: ± 500mV
Polarizing voltage: ± 500mV
Printing format: A4, B5
Report format: BMP, PNG, PDF, JPG
Operating system: Windows 2000 / XP / Vista / 7 / 10 / 11
Standard accessories
1 ECG lead cable
6 Chest electrodes
2 Extension cables (to electrode)
4 Limb electrode clamp
1 CD software
2 Lead cable clamps
1 ECG workstation installation user manual: GB, IT

In the same family are available
CONTEC 8000 WIRELESS ECG WORKSTATION - 12 CHANNELS
ECG CABLE for 33316 - spare
