CHISON ECO2 B&W ULTRASOUND - 1 probe connector
Category:
browse:

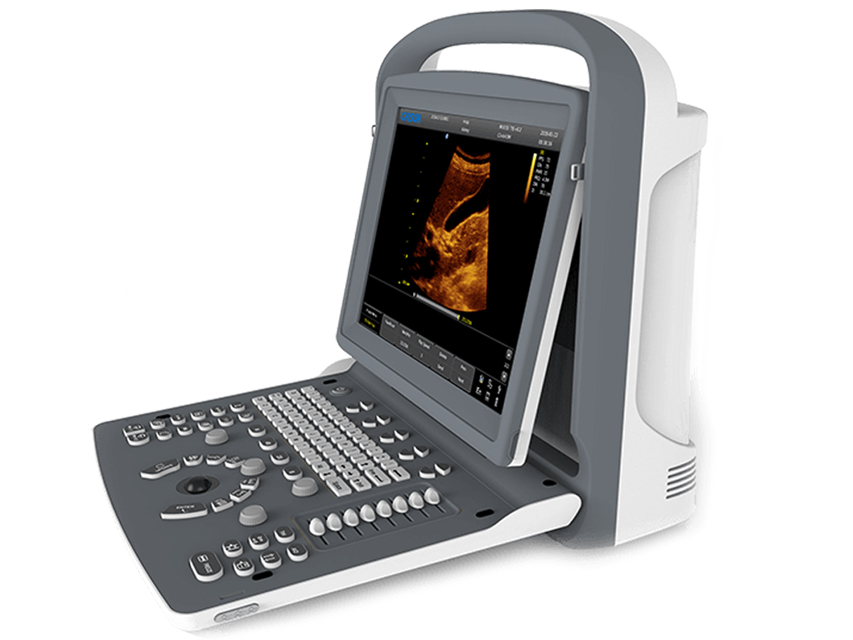

CHISON ECO2 B&W ULTRASOUND - 1 probe connector
Stock availability:
19
Product Code:
33862
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
1291589
CND:
Z11040101
EAN/UPC:
8023279338621
UMDNS:
15976

certificates

declaration
of conformity

ISO certificates

operator
manual

download
catalogue page
CHISON ECO2 with 1 probe connector without probe

ECO 2 Powerful and affordable B/W system
- ultra-compact and ultra-light weight, easy to carry
- latest LED screen technology, super bright images allow to easily view scan even outdoor
- ergonomic monitor design, 30 degree rotation, adjustable
- ultra-long battery life up to 2.5 hours, for outdoor scanning
- one-key to enlarge image to full screen, easy to view from distance
- streamlined workflow, easy to operate, 6-one-key to finish the cycle of diagnosis.

Display modes and imaging processing
B, B/B, 4B, M, B/M, PW (ECO2, ECO3EXP. only) multi-frequency imaging.

Imaging processing
- compound Imaging - trapezoidal
- i-image intelligent image optimization - automatic PW trace
- THI (Tissue Harmonic Imaging) (ECO2, ECO3EXP. only)
- SRA (Speckle Reduction Algorithm) - Chroma
- full digital beam-former - AIO (Automatic
- full screen display Image Optimization)

User interface
- fold-up control panel and alphanumeric keyboard
- back-lit keyboard for good visibility in dark room
- indicator lights identify activated keys
- 8 TGC slides for easy adjustment
- short cut knob for quick adjustment (hot key user- defined)
- neat and clear keyboard layout, doctor can remember easily
- interactive back-lighting - user defined preset

Streamlined workflow, one key to:
- select desired application with automatic preset
- optimize the image automatically (AIO) - make report
- save still image and CINE loop - measure
- print to PC printer* (laser or inkject) or video printer
*See list of compatible printers on our websites

EASYVIEWâ„¢ Archive system
- image archive on hard disk and USB mobile storage
- multiple image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (auto review segment can be set) for 2D, M, PW (ECO2, ECO3EXP. only) images
- cine memory capacity (256 frames/10s)
- 3 USB ports

Norms
IEC 60601-1, IEC 60601-1-1 Electrical medical equipment,
IEC 60601-1-2 Electromagnetic compatibility,
IEC 60601-1-4 Programmable medical systems,
IEC 60601-2-37
Technical Specifications
Dimension and weight: 33.5x15.5xh 35 cm (13.2"x6.1"xh 13.8"); 6 kg
Display: 12" LED, high resolution 1024x768
Power: AC 100-240 V - 50/60 Hz

Rechargeable lithium-ion battery - option

- Software (language switchable by user): GB, IT, FR, ES, DE, CZ, TR, CN, RU
- User manual: GB, IT, CN
Standard accessories
12†high resolution LED monitor - B&W
12†high resolution LED monitor - colour
8G memory card
Hot Key
PC printer connection
3 USB port, 1 ethernet port
1 video out port, 1 VGA out port, 1 footswitch port
Full screen display
2.5 hours rechargeable lithium-ion battery optional
Power adaptor
Standard software package
Easy View image archive system
THI
PW (doppler function to detect blood flow speed)

In the same family are available
3.5 MHz CONVEX PROBE for Chison 8300 code 33900
3.5 MHz CONVEX PROBE for ECO1/2/3/5/6
5.3 -10 MHz LINEAR PROBE for ECO1/2/3/5/6
6.0 MHz MICRO-CONVEX PROBE for ECO1/2/3/5/6
6.0 MHz PHASED ARRAY PROBE + CW + TDI for ECO6
7.5 MHz LINEAR PROBE for Chison 600M code 33930/1
7.5 MHz LINEAR PROBE for Chison 8300 code 33900
AUTO IMT
CARRYING BAG for ECO1/2/3/5/6
CHISON 3.0 MHz MICRO-CONVEX PROBE for ECO1/2/3/5/6
CHISON 6.0 MHz MICRO-CONVEX PROBE for ECO1/2/3/5/6
CHISON 7.5 MHz TRANSRECTAL PROBE for ECO1/2/3/5/6
CHISON 9.0 MHz LINEAR PROBE for ECO1/2/3/5/6
CHISON ECO1 B&W ULTRASOUND - 1 probe connector
CHISON ECO2 B&W ULTRASOUND - 1 probe connector
CHISON ECO3 EXP. B&W ULTRASOUND - 2 probe connector
CHISON ECO6 COLOUR ULTRASOUND - 2 probe connector
LITHIUM-ION RECHARGEABLE BATTERY for ECO1/2/3/5/6
NEEDLE GUIDED BRACKETS for ECO1/2/3/5/6 - specify for which probe
SUPER NEEDLE
TR-9000 TROLLEY for ECO1/2/3/5/6
