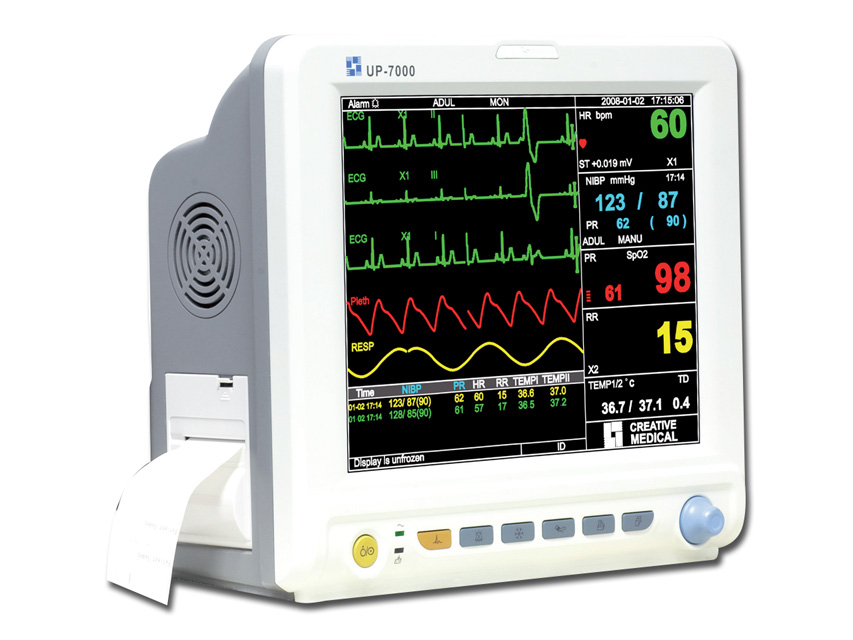

UP 7000 MULTIPARAMETER PATIENT MONITOR
Category:
browse:
UP 7000 MULTIPARAMETER PATIENT MONITOR
Stock availability:
267
Product Code:
35145
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II B
RDM (NSIS):
1844523
CND:
Z1203020201
EAN/UPC:
8023279351453
CH-REP:
No

certificates

declaration
of conformity

box
label

ISO certificates

operator
manual

download
catalogue page
MULTI-PARAMETER PATIENT MONITOR ECG, RESP, SpO2, 2 TEMP, PR, NIBP

- 12.1" high resolution colour TFT display with LED backlight
- 3 channel ECG amplification
- arrhythmia analysis and ST segment analysis
- up to 2,000 groups parameter data & 24-hour ECG waveform storage and recall
- 9 trace ECG waveforms simultaneous display
- adult/pediatric/neonate measurement modes
- visual and audible alarms
- built-in rechargeable lithium battery
- built-in thermal printer
- multilanguage internal software: GB, FR, IT, ES, PT, PL, TR, RU, CN
Technical Specifications
NIBP Monitoring - Oscillometric
• Measuring range (Systolic pressure): [Adult: 40~275 mmHg] [Pediatric: 40~200 mmHg] [Neonatal: 40~135 mmHg]
• Measuring range (Diastolic pressure): [Adult: 10~210 mmHg] [Pediatric: 10~150 mmHg] [Neonatal: 20~165 mmHg]
• Measuring range (Mean arterial pressure): [Adult: 40~135 mmHg] [Pediatric: 10~95 mmHg] [Neonatal: 20~110 mmHg]

TEMP Monitoring
• Measuring range: 21.0°C ~ 50.0°C ± 0.2°C
• Responce time: = 150 sec

SpO2 & Pulse Rate Monitoring
• Input dynamic range: 0% ~ 100%
• PR measuring range: 0 bpm ~ 250 bpm

ECG Monitoring
• Input dynamic range: ±0.5 mVp ~ ±5 mVp
• HR measuring range: 15 bpm ~ 350 bpm

RESP Monitoring
• Measuring method: Thorasic impedance
• Monitoring range: 0 rpm ~ 120 rpm, ±5% or ± rpm whichever is greater

Other Technical Specifications
• Power supply: 100 ~ 240 Vac, 50/60Hz
• Power consumption: <80 VA
• Alarming mode: Audible-visual alarm
• Networking port: Ethernet port
Standard accessories
• Adult SpO2 probe
• NIBP adult cuff
• Temperature probe - skin
• ECG cable 5 leads (RA - LA - LL - PL - C)
• Rechargeable battery
• Printer
• Power supply cable
• Disposable electrode
• Dust-protective mantle
• Manual (GB, IT)
