PC-300 SPOT-CHECK MONITOR SpO2, NIBP, TEMP, PR with display
Category:
browse:
PC-300 SPOT-CHECK MONITOR SpO2, NIBP, TEMP, PR with display
Stock availability:
2313
Product Code:
35162
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
1316220
CND:
Z1203020202
EAN/UPC:
8023279351620
GMDN:
57960
PARAF:
977815493
CH-REP:
No
UK-REP:
Yes

certificates

declaration
of conformity

box
label

ISO certificates

operator
manual

download
catalogue page

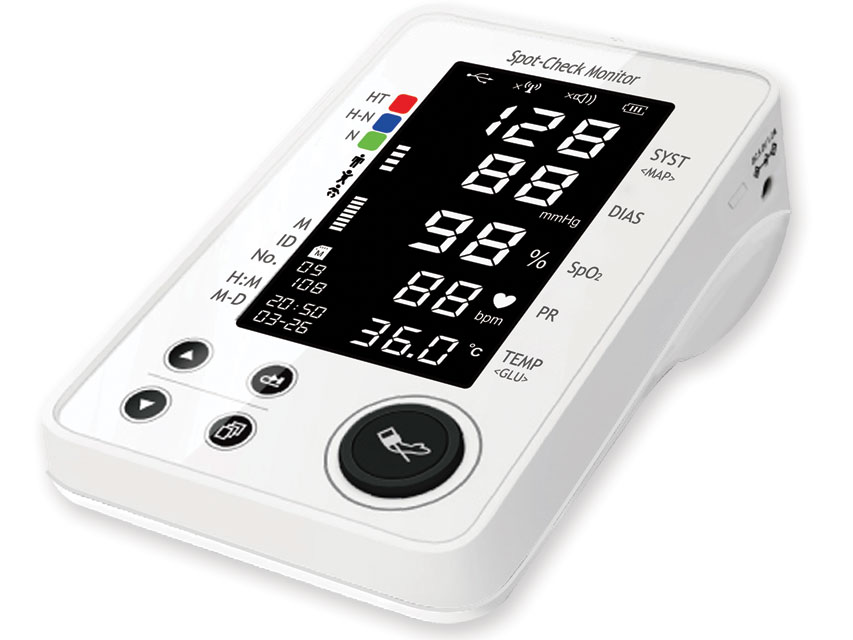

PC-300 handheld Spot-check monitor measures SpO2, Pulse Rate, NIBP and TEMP.

Widely used in hospitals, clinics and family daily measurement.

Equipped with Bluetooth and USB interface, allows to transfer data to PC, tablets and smartphone (Android and iOS).

- up to 6000 groups NIBP data storage, up to 100 different patients (each user can store 999 measurement records)
- quick ear probe TEMP measurement result in 5 seconds
- data transfer to PC/Smartphone by USB or Bluetooth
- optional NIBP pediatric cuff and SpO2 pediatric probe
- optional ECG and Glucometer
- built-in rechargeable lithium battery
- communication protocols available on request

Size: 165 x 96 x 68 mm.
Memory of 6,000 NIBP measures
Technical Specifications
SpO2
Measuring range: 0-100%
Accuracy: ±3% (70-100%)

Pulse Rate
Measuring range: 30-240 bpm
Accuracy*: ±2% or ±2 bpm (whichever is greater)
*Root-mean-square value of deviation according to ISO 80601-2-61, ISO 9919

NIBP
Pressure range: 0-300 mmHg (0-39.9kpa)
Accuracy: ±3 mmHg
Measuring range:
Systolic pressure: 30-270 mmHg
Diastolic pressure: 20-235 mmHg
MAP 10-220 mmHg

TEMP
Measuring range: 32-43.0°C
Accuracy: ±0.2°C (36-39°C) - ±0.3°C (other)
Measuring time: <5 s

ECG (Optional)
Heart Rate measuring range: 30-240 bpm
Heart Rate accuracy: ±2 bpm or ±2% whichever is greater
Display scale: 5.0 mm/mV ±10%
Common-mode rejection ratio (CMRR): =60 dB

Blood Glucose (Optional)
Measuring range: 20 to 600 mg/DL

Power Supply
Battery: 3.7 V built-in Li-ion battery
Operating voltage: 3.6-4.2 VDC
Operating current: =800 mA
Charger: 100 - 240 VAC, 50/60 Hz, 5 VDC or USB
Standard accessories
SpO2 adult probe
NIBP adult cuff
Ear thermometer (probe covers not included)
Lithium battery with charger
Carrying bag
User manual: GB, FR, IT, ES
