AIVIEW V10 PATIENT MONITOR
Category: Patient monitors Vital Sign and accessories next >> << previous browse:


	Stock availability: 40 Product Code: 54500 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II B RDM (NSIS): 2783444 CND: Z1203020201 EAN/UPC: 6941900600850 GMDN: 33586 CH-REP: Yes
certificates Download certificates AIVIEW V10 PATIENT MONITOR CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity AIVIEW V10 PATIENT MONITOR English operator manual Download operator manual AIVIEW V10 PATIENT MONITOR English French Italian Spanish Portuguese

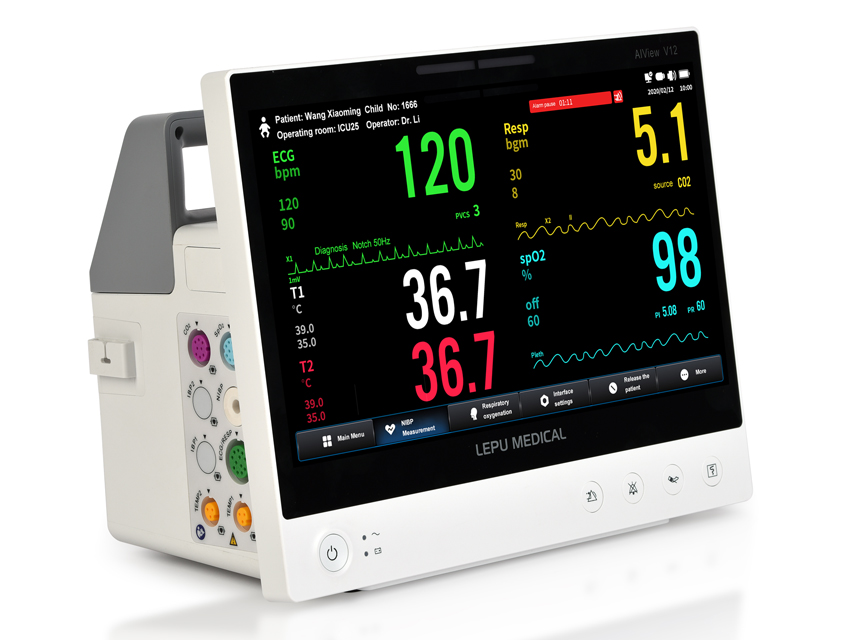

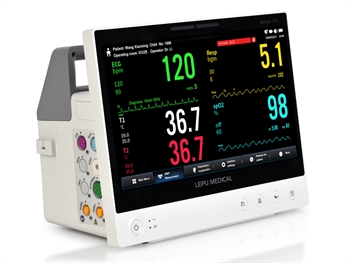

AIVIEW V10 PATIENT MONITOR 11.6" - 5 LEAD ECG

AI intelligent multi-parameter monitor, with hardware rgonomic design and software flat interactive design, meets ifferent needs for different hospital departments. Clear and oncise menu allows medical staff to easily learn how to use it, ignificantly improving the efficiency of use. It monitors ECG, pO2, PR, NIBP, Temp and RESP. Up to 5 leads of ECG can be isplayed on the same screen. AI VIEW provides a variety of moitoring modes, which greatly improves the experience for doctors and patients: night mode, privacy mode, intubation mode, monitoring paused mode. For adult, child and infant.

Features:
- EWS (Early warning score), MEWS, CART, GCS
- Wi-Fi connection
- capacitive touch screen, easy and convenient to operate
- integrated handle for easy transport
- ultra-high resolution provides clearer picture quality and better visual effects
- 105° tilted screen ergonomically designed for better bedside viewing
- dual alarm lights facilitate long-distance identification of alarm conditions. Left light: phisiological alarm, right light: technical alarm
- the absence of fan reduces noise to provide a better monitoring environment

Powerful clinical features
- 28 types of arrhythmia analysis to monitor patients' heart rate and give accurate results
- ST&QT analysis, HRV analysis, HRV analysis time > 5min;
- unique anti-motion algorithm blood oxygen technology

MoveOXY, which ensures accurate measurements in the process of patient movement and in the case of low temperature or weak peripheral circulation.
The AI VIEW can be also connected to a central monitoring station (35323) via wired and wireless networks and enables bedside observation, as well as direct connection to a thirdparty electronic medical record (EMR) via the HL7 output.

Touchscreen display: Colour TFT LCD 11.6"
Resolution: 1366×768
Max. waveforms: 10

ECG
ECG channels: 5 leads
CMRR: Surgery mode, monitor mode, ST mode > 105dB / Diagnostic mode > 90dB
Frequency: Diagnostic mode: 0.05-150 Hz / Monitor mode: 0.5-40 Hz / Surgery mode: 1-20 Hz / ST mode: 0.05-40 Hz
Input impedance: =10MO
ECG scan speed: 6.25, 12.5, 25, 50 mm/s
Sampling rate: 500 Hz
Sensitivity selection: x1/8, x1/4, x1/2, x1, x2, x4, AUTO
Heart rate range: 15-350 bpm

RESP
Measuring range: Pediatric: 0-150 rpm Adult: 0-120 rpm

NIBP
Measuring range: 0~300 mmHg (0.0~40.0 kPa)
Mode: Manual, Auto, NIBP STAT, Customized multi-cycle

SpO2
Measuring range: 0% to 100%

Temp
Measuring range: 0°-50°C (32°-122°F) skin
Memory: 8G internal SD card
Data storage: NIBP recorder: 2000 sets / Trends data: 240 h / Events: 1000 sets

Ports: 1 RJ45, 1 VGA, 2 USB, 1 multi-function
Battery: rechargeable battery, 2750 mAh
Operating time: more than 4 hours
Size: 290x170x230 mm
Weight: =3 kg
Protection: IPX2, anti electricshock CF type
Voltage: 100-240 V, 50/60 Hz
