GIMA 5 In 1 MULTIFUNCTIONAL HEALTH MONITOR
Category:
browse:
GIMA 5 In 1 MULTIFUNCTIONAL HEALTH MONITOR
Stock availability:
3190
Product Code:
35192
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
2778389
CND:
Z1203020201
EAN/UPC:
6974364650789
GMDN:
33586
PARAF:
950453934
CH-REP:
No
UK-REP:
No

certificates

declaration
of conformity

box
label

ISO certificates

operator
manual

download
catalogue page

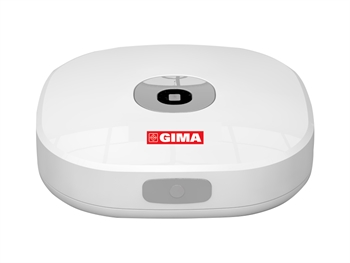

GIMA 5 in 1 multifunctional health monitor

Gima Health Monitor 5 in 1 is a small and portable multifunctional device, intended for measurement of 5 vital signs: body temperature, blood pressure, blood oxygen, ECG heart rate and respiration rate.

Gima Health Monitor works with Bluetooth connection for data transmission to a mobile phone application, where measurements are recorded and stored.

The device has infrared and pressure sensors to collect information.

Health monitor free App (GB, IT).
Supplied with magnetic detachable arm cuff, USB charging cable, multilingual manual (GB, FR, IT, ES, DE).
Technical Specifications
Blood pressure Heart Rate
Measuring method: oscillometric
Cuff size: 22-35 cm
Measuring range: 0-300 mmHg ±3 mm
HgHeart rate: 40-180 bpm ±5%
Systolic pressure: 60-230 mmHg
Diastolic pressure: 40-130 mmHg

ECG
Measurement mode: Single lead
Input impedance: =100 KO; Input circuit current: <0.1 µA
Calibration voltage: 1 mV ±0.05 mV
Sensitivity tolerance: < 10%
50Hz interference suppression filter: > 20 dB
Maximum input range: ±4.5 mV
Polarization resistance voltage: ±300 mV
Amplitude variation: < 10% Frequency response: 0.5~40 Hz

Blood oxygen
Measuring method: reflective
Method Measuring range: 90-99% ±2%

Temperature
Measuring method (forehead): infra-red
Measuring range: 28-42°C
Accuracy: 35-42°C ±0.2°C; <35°C ±0.4°C

Device
Power voltage: DC3.7V
Built-in battery: rechargeable lithium-ion
Battery life: 500 measurements
Size - weight: 70x70x18.4 mm - 70g
Wireless communication: Bluetooth 4.0
Working frequency: 2.4000-2.4835 GHz
Electric shock protection: BF-style applied part
