I-PAD DEFIBRILLATOR - Italian (Sold out, replaced by code: 33426, 35340)
Category: Defibrillators next >> << previous browse:


	Stock availability: 0 Product Code: 33414 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II B RDM (NSIS): 18731 CND: Z12030501 EAN/UPC: 8023279334142 GMDN: 47910 PARAF: 924269739
certificates Download certificates I-PAD DEFIBRILLATOR - Italian CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity I-PAD DEFIBRILLATOR - Italian declaration of conformity box label Download box/label I-PAD DEFIBRILLATOR - Italian Original Product Label Safety datasheet Download Safety datasheet I-PAD DEFIBRILLATOR - Italian Safety datasheet ISO certificates Download ISO 9001/13485 certificates I-PAD DEFIBRILLATOR - Italian iso 9001/13485 certificates operator manual Download operator manual I-PAD DEFIBRILLATOR - Italian Italian

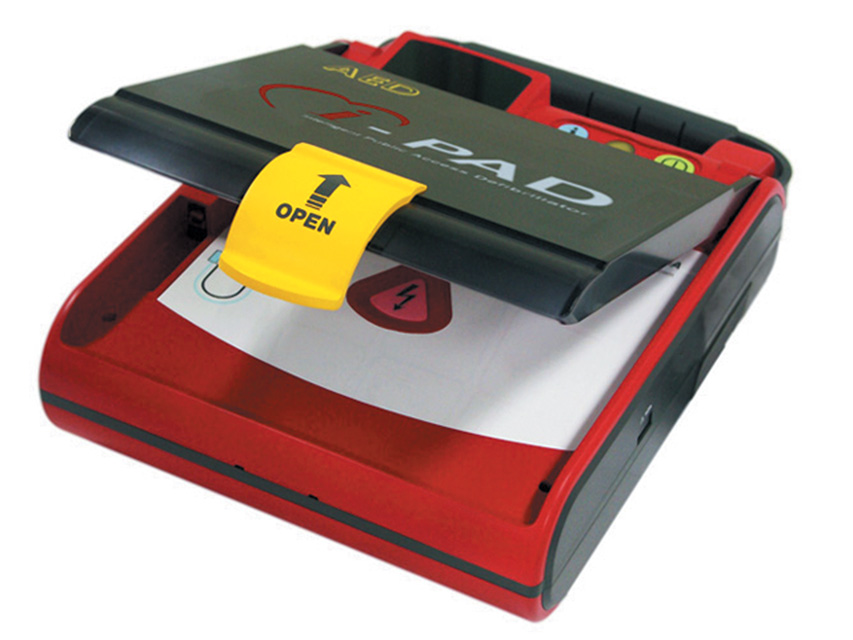

The i-PAD NF 1200 is a semi-automatic external defibrillator designed for minimally trained individuals. It provides simple and direct voice prompts and indications for a straightforward rescue operation. It is lightweight and battery powered for maximum portability. It is designed to treat Ventricular Fibrillation (VF) and Fast Ventricular Tachycardia. These two are the most common causes of sudden cardiac arrest (SCA). In SCA, the heart of the victim suddenly stops pumping. The only effective treatment for VF is the application of a defibrillating shock. It may be used on children 1-8 years old (less than 25 kg) with pediatric reduced energy pads, over with adult pads. Supplied with a set of adult pads, lithium battery (200 Shocks or 10 hours operating time), manual. According to ERC Guidelines 2015.

• Operating mode: Semi-automatic
• Waveform: e-cube biphastic (truncated exponential type); impedance compensated.
• Energy: 200J fixed
• Adult:
- nominal 150 J into a 50 ohm load.
- Infant/child: nominal 50 joules into a 50 ohm load.
• Shock energy accuracy: within ± 3% (200J into 50 ohm
• Shock to shock cycle time: Typically less than 20 seconds.
• Protocol: Voice prompts and indicators guide through protocol.
• Charge control: Automatic by Software (Arrhytmia Detection System and Charging control).
• Charge time from "Shock advised": <10 seconds, typical
• Voice instruction: Voice messages guide through use of defibrillator
• Controls: Shock Button, i-Button, On/Off Button.
• Indicators: 7 LEDs (different colors), i-Button.
• Patient isolation: Type BF.
• Battery: 12 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life primary cell
• Battery capacity: Min. 200 Shocks or 10 hours of operating time.
• Data recording and transmission: Data stored: First 40 minutes of ECG and the entire incident's events and analysis decision.
• Size: 220 x 260 x 70 mm
• Weight: 2.2 Kg (4.48 lbs) with battery pack
