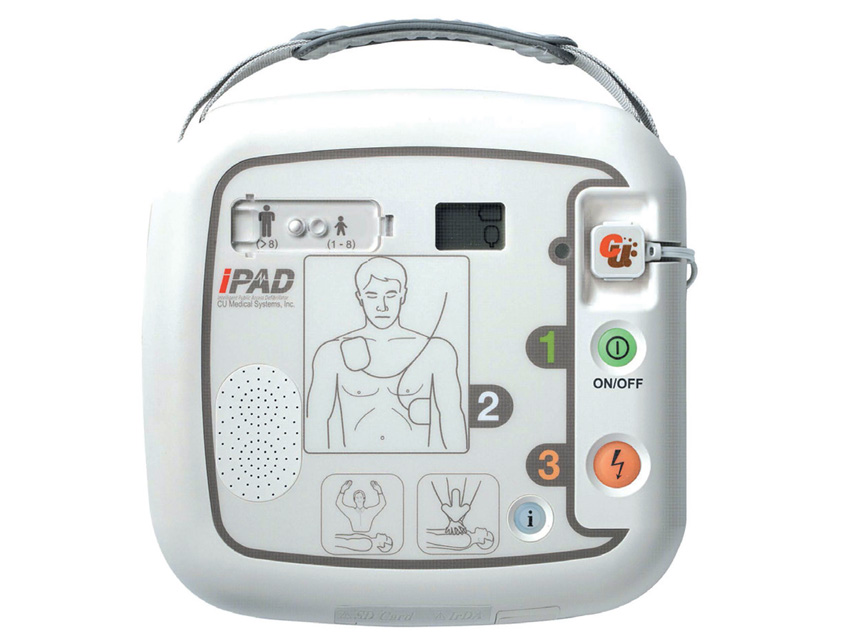

IPAD CU-SP1 DEFIBRILLATOR - semi-automatic
Model: CU-SP1 Plus - semiaut. Joule: 200 Software voice: US, GB, FR, IT, ES, DE, PL, KR, JP, Arabic Online Manual*: US, GB, IT, ES, DE, PL, FR, KR, JP, Arabic *Languages listed in "Voice", but not in "Manual" have English manual. Paper manual only for GB, IT
CU-SP1 is the latest generation of intelligent public access defibrillators with innovative features.
CU-SP1 Semi-Automated External Defibrillator (AED) Easy-to-use, light and portable AED with battery. The AED automatically reads the patient’s electrocardiogram (ECG) and determines if a cardiac arrest, that requires defibrillation, has occurred, so that both medical professionals and general public can easily operate it. Available 200 joule.
Features: - Auto volume adjustment It detects ambient noise and automatically adjusts volume of its prompts to make them audible over the background noise.
- Smart pads - intelligent storage The pre-connected "Smart" electrode pads are stored in an easy access compartment on the underside of the unit. This ensures that the IPAD SP1 is always ready to be used in the shortest time possible. In addition, the visual frontal indicator shows if the connected pads are within their life expectancy. The indicator will change when the pads have only 3 months life left before their expiry date giving you time to arrange for replacements. It will change again when the expiry date is reached.
- CPR detection CPR ensures that the casualty has the best chances of survival. The CU-SP1 detects if CPR is being performed with appropriate prompts, if not it encourages the responder to perform it.
- Easy communication with CU-EX1 software installation CU-EX1 software on computer allows to see and analyze the usage history of the unit: time of "power on", the casualty's heart rhythm and shocks delivered are clearly presented.
Technical Specifications
Defibrillator Operating mode: Semi-automatic Waveform: e-cube biphasic (Truncated exponential type) Energy: Adult: nominal 200J between 25 to 175 ohm; Infant/child: nominal 50 joules at 50 ohm Charge control: controlled by automated patient analysis system Charging time: within 10 seconds since voice instruction "an electric shock is needed" Sealing: waterjet proof IPX5 per IEC60529 (IP55); dust protected IP5X per IEC60529 Size - weight: 260x256x69.5 mm - 2.4 kg (including pads and battery)
User interface User support: detailed voice prompts and flashing indicators CPR guidance: voice prompts for how to perform CPR for adult and child Controls: on/off button, ”i“ button Indicator: LCD display (Device status, Battery status, Pads status) Sensing: pads expiry date, Pads connection status CPR Monitoring Automatic Volume adjustment
Data recording and transmission IrDA port / SD card: for PC communication Internal Memory Data capacity: multi recording 5 individual events / Max 3 hours Data review PC Programme: CU-EX1
