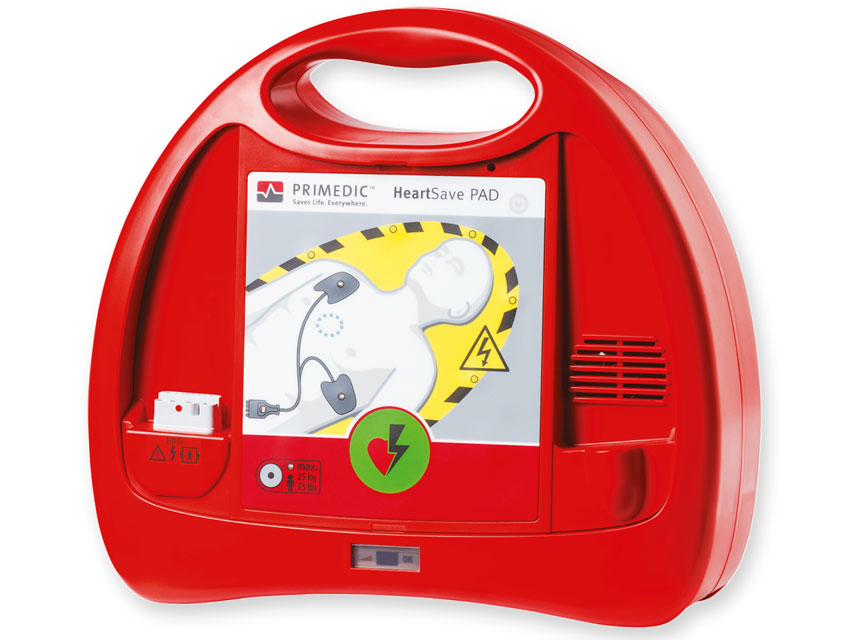

PRIMEDIC HEART SAVE PAD - Defibrillator with lithium battery - GB
Category: Defibrillators next >> << previous browse:


	Stock availability: 16 Product Code: 33395 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II B CND: Z12030501 EAN/UPC: 8023279333954 GMDN: 37806 UMDNS: 17-116 CH-REP: Yes UK-REP: No
certificates Download certificates PRIMEDIC HEART SAVE PAD - Defibrillator with lithium battery - GB CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity PRIMEDIC HEART SAVE PAD - Defibrillator with lithium battery - GB declaration of conformity box label Download box/label PRIMEDIC HEART SAVE PAD - Defibrillator with lithium battery - GB Original Product Label ISO certificates Download ISO 9001/13485 certificates PRIMEDIC HEART SAVE PAD - Defibrillator with lithium battery - GB iso 9001/13485 certificates operator manual Download operator manual PRIMEDIC HEART SAVE PAD - Defibrillator with lithium battery - GB English download catalogue page

HeartSave PAD
- With Lithium battery (140 discharges at @360J) 3 years standby
- Languages: English

PRIMEDIC HeartSave product range is easy to operate and offers fast operation.
Clear voice prompts guide first aiders through the rescue procedure.

• Current controlled defibrillation - CCD
CCD biphasic technology delivers peak-free current defibrillation on the patient‘s heart muscle through its individualized, gentle, effective and current-controlled defibrillation pulse. Featuring an escalating defibrillation strategy, HeartSave is impedance compensated and capable of a maximum energy of 360J.

• Effective workflow
HeartSave is designed to help first aiders delivering the most effective life support. Through its advanced workflow, HeartSave supports the rescuer in minimizing the perischok pause as well as no-flow fraction.

• Pediatric mode
At a touch of a button the paediatric mode can be promptly selected. No need of dedicated paediatric electrodes and extreme ease of use result in optimized costs of maintenance and prompt operation.

• Fast
The device turns on automatically as soon as the cover has been opened and rhythm analysis starts immediately as the pre-connected electrodes are attached to the patient. All needed accessories (razor, breathing mask, scissors and gloves) are included in the cover.

• Status display
Active status display provides comprehensive information on the device‘s operating status and battery status (daily and mounthly self-tests).

• HEARTSAVE PAD
Automatic external defibrillator with 3 years life in standby mode non rechargeable lithium battery.

• Defibrillation
Semi-automatic mode
Wave: biphasic, current controlled pulse
Energy: 50-360J
Charging time: < 12 sec @ 360J
Operating modes: asynchronous
Paediatric mode

• ECG
Patient's impedance range: 23-200 Ohm

• VF:VT Detection
VF/VT Detection
Analysis time 7-12 sec
Asystole threshold: <0.2mV
Artefact - Pacemaker detection

• Electrodes
Non polarized electrodes, cable length 2 m

• Data backup
Removable memory
Voice recording

• Power supply
Lithium battery 3 years life or 140 discharges at 360J

• Status display
Defibrillator and battery status visualization
