iPad CU-SP2 DEFIBRILLATOR - AED and manual with monitor specify language with order (Sold out)
Category: Defibrillators next >> << previous browse:


	Stock availability: 0 Product Code: 35352 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II B RDM (NSIS): 1989284 CND: Z12030501 EAN/UPC: 8023279353525
certificates Download certificates iPad CU-SP2 DEFIBRILLATOR - AED and manual with monitor specify language with order CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity iPad CU-SP2 DEFIBRILLATOR - AED and manual with monitor specify language with order English box label Download box/label iPad CU-SP2 DEFIBRILLATOR - AED and manual with monitor specify language with order Original Product Label ISO certificates Download ISO 9001/13485 certificates iPad CU-SP2 DEFIBRILLATOR - AED and manual with monitor specify language with order iso 9001/13485 certificates operator manual Download operator manual iPad CU-SP2 DEFIBRILLATOR - AED and manual with monitor specify language with order English French Italian Spanish Portuguese German Czech download catalogue page

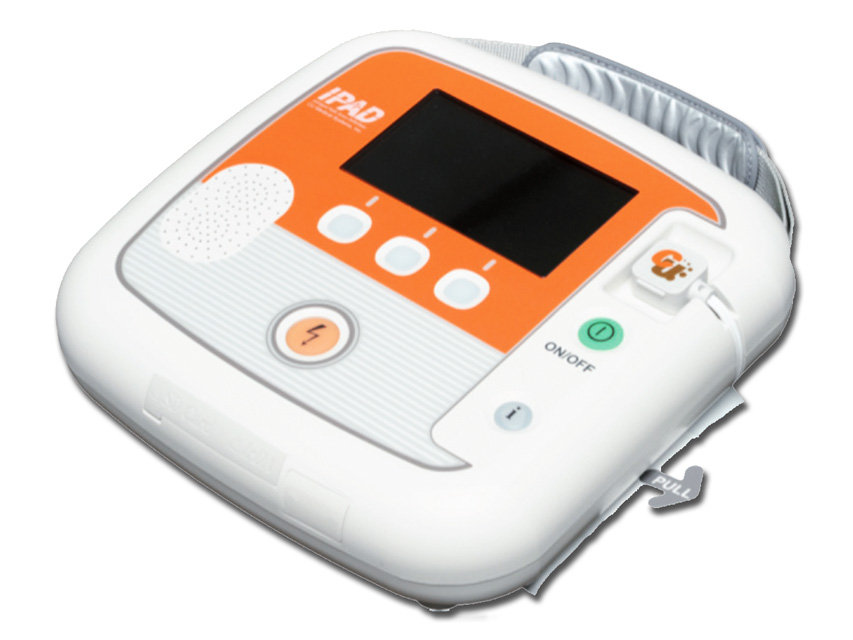

iPad CU-SP2 defibrillat or - AED + manual mode

Semi automated mode
Semi-automated external defibrillator that can be administered on sudden cardiac arrest (SCA) patients. CU-SP2 is an easy-to-use that is small, light, and portable defibrillator with a battery. The AED automatically reads the sudden cardiac arrest (SCA) patient’s electrocardiogram (ECG) and determines if a cardiac arrest that requires defibrillation has occurred, so that licensed emergency medical technicians, medical professionals and the general public can easily operate it.

Manual mode
In manual mode, the user determines whether the patient needs a defibrillation shock or not. It is intended for use by health care professionals and emergency rescue personnel who have been trained in advanced cardiac life support.

Innovative features:
- Auto volume adjustment
It detects the ambient noise and automatically adjusts the volume of its prompts to make them audible over the background noise.

- Smart pads - intelligent storage
The pre-connected "Smart" electrode pads are stored in an easy access compartment on the underside of the unit ensuring use in the shortest possible time. In addition, the visual frontal indicator shows if the connected pads are within
their life expectancy. The indicator will change when the pads have only 3 months life left before their expiry date giving you time to arrange for replacements. It will change again when the expiry date is reached.

- CPR detection
CPR is vital to ensure that the casualty has the best chances of survival. iPAD CU-SP2 detects if CPR is being performed with appropriate prompts, if not it encourages the responder to perform it.

- Easy communication with CU-EX1 software
It allows to see and analyze information such as time of "power on", the casualty's heart rhythm and shocks delivered. It saves 3 events on the internal memory (up to 17 hours per event).

- Wireless ECG transmission device (CU-EM1) - optional
In monitor mode, iPAD CU-SP2 uses Bluetooth to receive ECG data from CU-EM1 and displays it on the LCD screen.

- Printer - optional
iPAD CU-SP2 supports connection to an external Bluetooth printer.

- Software voice: US, GB, FR, IT, ES, PT, DE, PL, CZ , KR
- Online Manual: US, GB, FR, IT, ES, PT, DE, CZ, KR (Languages listed in "Voice" but not in "Manual" have English manual. Paper manual only for GB, IT)

Defibrillator
Operating mode: Semi-automatic, manual
Waveform: e-cube biphasic (Truncated exponential type)
Energy: AED mode: 150/200J fixed or 150-150-200J energy escalating / Manual mode: 2-200J, R-Sync
Charging time: within 10 seconds
Charging time after CPR finished: at least 6 seconds
Sealing: waterjet proof IPX5 per IEC60529 (IP55)
dust protected IP5X per IEC60529
Size - weight: 260x256x69.5 mm - 2.4 kg

User interface
User support: detailed voice and text prompts
CPR guidance: voice prompts for how to perform CPR for adult and child
Controls: on/off button, ”i“ button, shock button, soft keys
Indicator: graphic LCD display (status, user's guide, ECG, heart rate, .....)
Sensing: pads expiry date, pads connection status
CPR Monitoring, ECG Monitoring, Automatic Volume adjustment

Data recording and transmission
IrDA port: wireless transmission of event data to PC, SD Card
Internal Memory (Nand-flash): ECG, Event
Storage capacity: multi recording 3 events / Max 17 hours for each event
Bluetooth: communication with the printer or ECG CU-EM1
Data review PC Programme: CU-EX1

Patient analysis system
Patient Analysis: Shockable Rhythms (Ventricular Fibrillation, Tachycardia)
Sensitivity/Specificity meets AAMI DF80 Guideline

Battery
Standard Type: DC 12 Volt 4.2 Ah, Lithium manganese dioxide
Capacity: Minimum 200 shocks (150J)
Rechargeable (optional) Type: DC 11.1 Volt 1.9 Ah, Li-ion rechargeable
Capacity: Minimum 60 shocks or 3 hours of operation

Altitude operating range:
Altitude 0-5,000 m
