MEDIONE TRQ-2020 AUTOMATIC TOURNIQUET - 2 channels
Category:
browse:

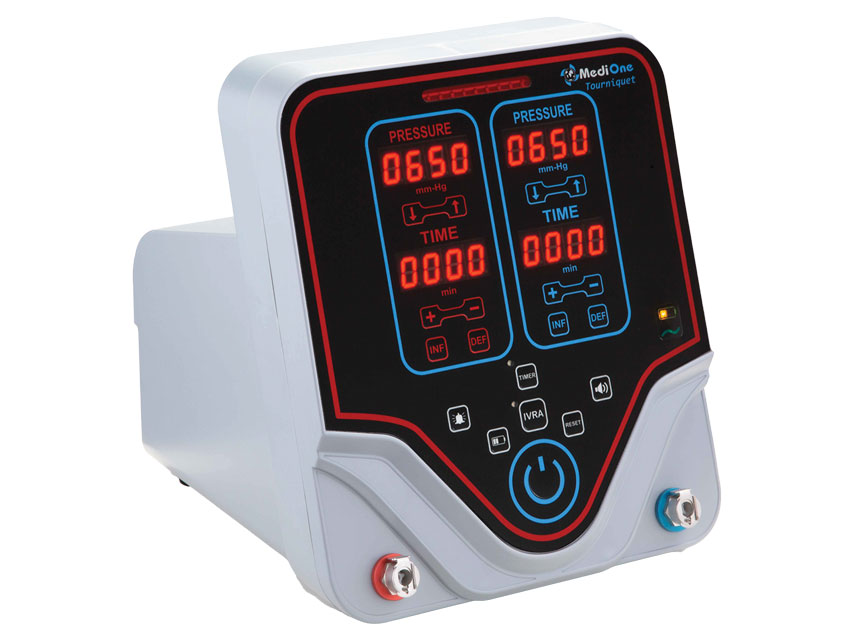

MEDIONE TRQ-2020 AUTOMATIC TOURNIQUET - 2 channels
Stock availability:
0
Product Code:
33108
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
2789673
CND:
Z12139006
EAN/UPC:
8682754922009
GMDN:
14074

certificates

declaration
of conformity

box
label

operator
manual
TRQ-2020 AUTOMATIC TOURNIQUET - 2 CHANNELS

Tourniquets used to temporarily stop or slow the blood flow in the patient's upper and lower extremities during surgical procedures. In addition, in the application of Regional Intravenous Anesthesia (IVRA), it prevents blood flow to that area after the blood of the extremity is drained. Designed for continuous use in adults and children. Adjustable pressure range is from 20 to 650 mmHg. Tourniquets have 2 connection sockets to use two cuffs. IVRA can be applied with a double cuff. Medical Device Class IIa.

Features:
• Automatic leakage test and system test
• Possibility to use 1 double or 2 single cuffs at the same time
• Safety, visual & audio alarm system
• LED display screen
• Microprocessor Controlled
• Adjustable application time, pressure range and timing alarm
• Built-in rechargeable lithium-ion battery capacity 20 hours
• 4 tourniquet cuffs included
• Carrying handle

INTENDED USE OF TOURNIQUET SYSTEM
• Leg - arm fractures
• Arthroscopic Surgery
• Carpal Tunnel Syndrome
• Amputations
• Leg and arm implant insertion and removal
• Varicose vein
• Tendon correction
• Tumor excisions
• Finger, wrist, knee, elbow joint prosthesis
• Cyst excisions
• Implant insertion and removal for upper/lower extremities
Technical Specifications
Cuff pressure range: 20 - 650 mmHg ± 5 mmHg
Time range: 2-240 minutes ± 1 minute
Nominal compressor value: 12 V, mask. 1.5 bar
Display: LED Display Screen
Operating voltage: 100-240 V / 50-60 Hz 0.3A Max
Rechargeable battery: Lithium battery, 14.4 V, 5.8Ah activates in case of power failure
Size - Weight: 235x268xh 275 mm; 3.65 kg
Protection: type BF,Class II, IP20
Standard accessories
1 reusable single cuff 12" - 30.5x7.6 cm - baby leg/child arm
1 reusable single cuff 18" - 45.7x10.2 cm - child leg/adult arm
1 reusable single cuff 30" - 76.2x12.7 cm - adult
1 reusable IVRA double cuff 20" - 50.8x15.2 cm - adult
1 blue patient connecting tube - 3 m
1 red patient connecting tube - 4 m
User manual GB, FR, IT, ES. TR available on gimaitaly.com
Power cable
