EURONDA E10 AUTOCLAVE B 24 litres - scroll&touch display 7"
Category: Horizontal autoclaves next >> << previous browse:


	Stock availability: 2 Product Code: 35680 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II B RDM (NSIS): 2405542 CND: Z12011305 EAN/UPC: 8023279356809 GMDN: 38671 CH-REP: Yes UK-REP: Yes
certificates Download certificates EURONDA E10 AUTOCLAVE B 24 litres - scroll&touch display 7" CE Certificate + extension letter declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity EURONDA E10 AUTOCLAVE B 24 litres - scroll&touch display 7" declaration of conformity

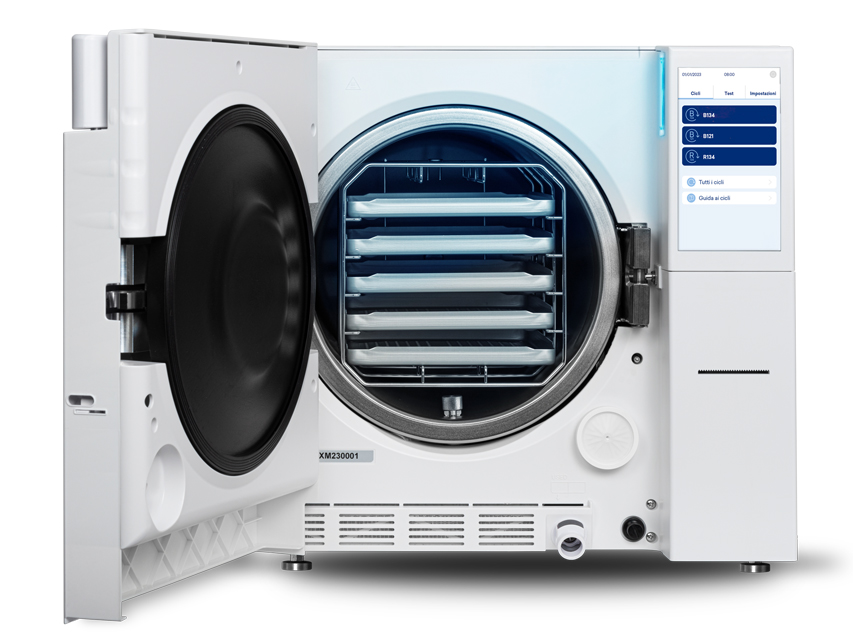

EURONDA E10 AUTOCLAVE B 24 litres - scroll&touch display 7"

E10 offers high-performance sterilization processes. Its interface is designed to simplify workflow by making it intuitive and functional, ensuring maximum freedom during operation. Interface is translated in 28 languages.

- intuitive 7" colour LED display, to speed up daily operations
- cycles and tests can be scheduled
- guiding LED lights to inform about the stage of sterilization cycle
- included USB and Ethernet connection allow to transfer and manage data on PC via E-Data and E-Memory software
- standard Wi-Fi for full digital traceability

EURONDA PRO SYSTEM AUTOCLAVES
Euronda Pro System is the protection system developed to guarantee a complete and effective instrument sterilization process that protects the safety of operators, patients and the working environment. Medical Device Class IIb. MDR certified.

Modular system
The modular design of Euronda autoclaves allows the side panels to be easily removed for ease of maintenance.

Inspection System
Full compliant with EN 13060. Inspection System makes tank cleaning quick and easy.

Integrated conductivity meter
It monitors the water quality, preventing possible malfunctions due to the use of unsuitable water.

Instant steam generator
It guarantees excellent performance in terms of speed, safety and sterilization. It improves water consumption by calibrating it according to the load and, in synergy with the heating elements, offers perfect drying.

Air-water separator
It acts as a protection for the vacuum pump, preventing residues of dirt, lubricating oils and steam from damaging its internal components, thus preserving its efficiency and reliability over time.

Dirt Control System
It allows precise separation of clean and dirty water flows to preserve the maximum efficiency.

Smart cooling system
Equipped with a probe that allows the most efficient management of the vacuum pump, ensuring longer life and effectiveness.

3 control tests included
3 control tests to verify operational effectiveness (Vacuum, Helix, Bowie & Dick).

Made in Italy.

SOFTWARES
E-Memory: archiving, management and traceability of sterilization cycles and data on PC
E-Data: connection of autoclaves to your management system for recording and tracking data. Windows and iOS compatible

E10 TECHNICAL SPECIFICATIONS

- Chamber capacity: 24 l
- Tray capacity: 700 cm²
- Water consumption per cycle: 0.3 l
- Vacuum pump capacity: 38 l/min, double head
- Tank capacity: 4 l for dirty water, 4 l for clean water
- Max. load solid/porous: 6/2 kg
- Colour display: 7"
- Min. depth of the support surface: 50 cm
- Min. width of the support surface: 46 cm
- Min. space above the tank: 30 cm
- External size: 46x61xh 45.5 cm
- Weight: 50.5 kg
- Power supply: 230 V 50/60 Hz
- Absorption: 2300 W 10 A

Cycle: B 121°
Pressure: 1.05 bar
Sterilization phase duration: 20 min
Drying phase duration: 15 min
Total duration with standard load: 40 min (Times are exclusive of the drying phase. The time may vary by ±5%)
Max solid/porous load: 6 / 2 kg

Cycle: B 134°
Pressure: 2.05 bar
Sterilization phase duration: 4 min
Drying phase duration: 15 min
Total duration with standard load: 24 min (Times are exclusive of the drying phase. The time may vary by ±5%)
Max solid/porous load: 6 / 2 kg

Cycle: B 134° Prion
Pressure: 2.05 bar
Sterilization phase duration: 18 min
Drying phase duration: 15 min
Total duration with standard load: 37 min (Times are exclusive of the drying phase. The time may vary by ±5%)
Max solid/porous load: 6 / 2 kg

Cycle: B 134° Fast
Pressure: 2.05 bar
Sterilization phase duration: 3 min
Drying phase duration: 4 min
Total duration with standard load: 23 min (Times are exclusive of the drying phase. The time may vary by ±5%)
Max solid/porous load: 0.6 / 0.2 kg

Cycle: B 134° Prion Fast
Pressure: 2.05 bar
Sterilization phase duration: 18 min
Drying phase duration: 4 min
Total duration with standard load: 37 min (Times are exclusive of the drying phase. The time may vary by ±5%)
Max solid/porous load: 0.6 / 0.2 kg

Cycle: N 134° (N cycles can be activated by password provided by Euronda)
Pressure: 2.05 bar
Sterilization phase duration: 4 min
Drying phase duration: 4 min
Total duration with standard load: 18 min (Times are exclusive of the drying phase. The time may vary by ±5%)
Max solid/porous load: 6 kg

Cycle: S 134° (S cycles can be activated by password provided by Euronda)
Pressure: 2.05 bar
Sterilization phase duration: 4 min
Drying phase duration: N/A
Total duration with standard load: 17 min (Times are exclusive of the drying phase. The time may vary by ±5%)
Max solid/porous load: 6 kg
