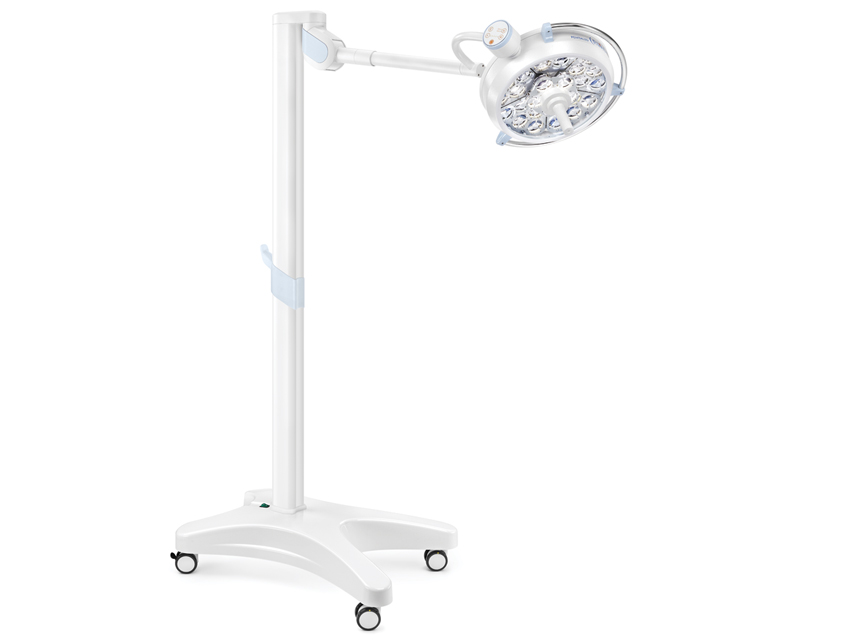

Pentaled 30E - mobile - 160,000 Lux
A compact size hi-tech product that guarantees great performance levels. It has 30 elliptical reflectors split into 6 modules each containing 5 LEDs, providing 160,000 LUX
- selectable 4,500 °K - 5,000 °K by pressing the digital key, the urgeon can choose two different white light temperatures - E-view: innovative lens allows to expand/narrow the illuminated perating field electronically, without altering intensity of light. - E-comfort: the indirect LEDs creates 3D shadowless llumination of the operating field, no risk of dazzling - E-white: only white LEDs to avoid risk of perception of colour temperature variations or coloured shadows - E-deep: centre of light is fitted with extra LEDs module specifically designed to reflect deep light for perfect 3D lighting.
Battery and high definition camera on request: battery group with automatic charger (4 hours autonomy). Long arm (985 mm) for optimal positioning. Complies with EU 2017/745 Class I - MD.
Technical Specifications
Adjustable light intensity at 1 m distance (Ec) 160 Klx Colour temperature - switchable 4,500 to 5,000 °K Colour rendering index (CRI) Ra 96 Light field (electronically adjustable) 14-26 cm Light field Ø where illuminance reaches 10% of Ec (d10) 210 mm Light field Ø where illuminance reaches 50% of Ec 80 mm Total radiated energy Ee where illumination reaches max level 627 W/m2 Average LED life 60,000 hours Power supply: 100-240 V - 50-60 Hz - 60 VA Regulations: IEC 60601-2-41 - EU 2017/745
