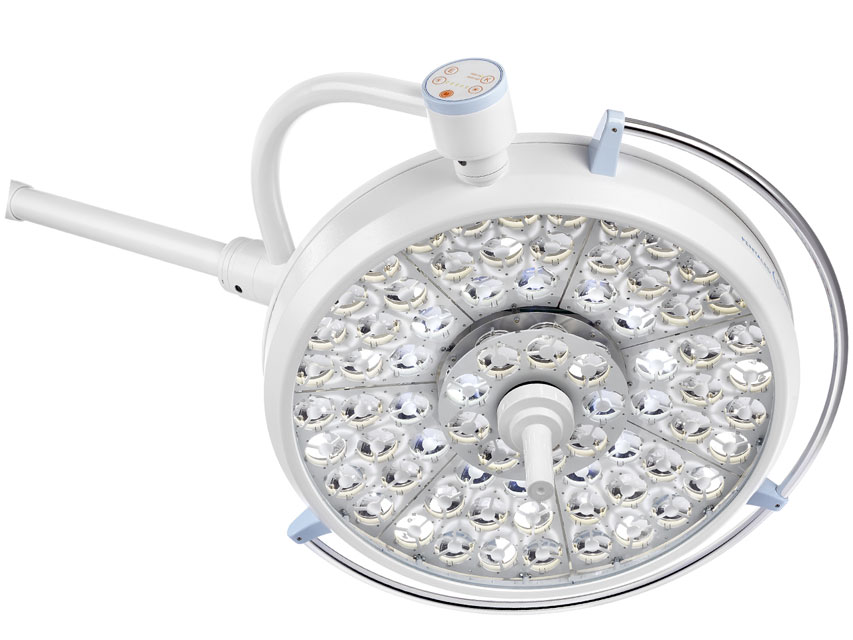

PENTALED 63N THEATRE LIGHT - ceiling
Category: LED Theatre lights next >> << previous browse:


	Stock availability: 0 Product Code: 49200 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: I RDM (NSIS): 2396305 CND: Z12010701 EAN/UPC: 8023279492002 CH-REP: No UK-REP: No
declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity PENTALED 63N THEATRE LIGHT - ceiling English Italian ISO certificates Download ISO 9001/13485 certificates PENTALED 63N THEATRE LIGHT - ceiling iso 9001/13485 certificates operator manual Download operator manual PENTALED 63N THEATRE LIGHT - ceiling English French Italian Spanish download catalogue page

PENTALED 63N - 160,000 LUX

Pentaled 63N is a high-tech product designed to guarantee excellent performance levels. PENTALED 63N has 72 elliptical reflectors split into 8 modules, each containing 9 LEDs. The modules are mechanically focused by rotating the sterilizable handle. The multiplicity of the luminous sources and the elliptical geometry of the parabolas studied to reflect in the depth the light beams generated by the LEDs, grant scialytic light for a threedimensional illumination without shadows.

Comfortable use
Thanks to the principle of indirect light, the lamp oriented towards different positions does not dazzle the surgeon and the assistants. The size of the lit field is adjusted mechanically through handle according to the light required by the surgeon.

Superior lighting features
Membrane keyboard activates the following functions:
• selection of the colour temperature 5,000°K and 4,500°K
• adjustment of the light intensity up to 160 Klx
• on/off
• endoled light with colour selection (comfortable light for endoscopy intervention)
The colour temperature of 5,000°K stimulates the surgeons' concentration, does not strain their sight, reproduces the colour of the tissues faithfully and increases the definition of the edges.

Reliable and long lasting performances
The modular construction of the electronic board that feeds the LEDs guarantees continuous light, even in the unlikely event that a LED or board component should fail. The lighting body is protected by tempered glass screen, covered by a special film avoiding any fallen down splinters in case of break.

Easy manoeuvrability
The reduced dimensions and the light reflector provide extreme manoeuvrability and stability. Smooth 360° rotation. The extremely light structure, the aluminium treated bar attached to the upper front of the cupola, the ultra-thin dome (only 13 cm) allow simple movements.

Battery group, TVCC camera, monitor holding camera on request
Every lamp can be supplied with an emergency battery group with automatic charger (hours autonomy: 2.5 (49200), 2.5 (49201), 2 (49202)), TVCC camera or monitor holding arm.

Full certification
Complies with European Directives 93/42/EEC and 2007/47/EC ‘Class I - Medical Device’ CE marking. Made in Italy.

Performance:
• Light intensity at 1 m distance (Ec): 160 klx
• Colour temperature: double selection 4500/5000 °K
• Colour rendering index (CRI): 96 Ra
• Light field diameter: adjustable from 21 to 42 cm
• Total radiated energy Ee where the illumination reaches max level: 543 W/m2
• Number of LED: 72
• Diameter and focus adjustment: manual
• Depth of illumination IEC 60601-0-41 L1+L2 at 60%: 46 cm
• Depth of illumination IEC 60601-0-41 L1+L2 at 20%: 108 cm
• Control of illuminance: 25-100 %
• Endo LED light intensity min-max: 5-20 klx

Electrical data:
• Operating power (VAC): 100-240V
• Operating power Vdc: 24V
• Electrical absorbed power: 145 VA
• Frequency: 50/60Hz
• Average LED life: 50,000 h

General data:
• Colour: 9003 RAL
• Minimum height of the room (standard): 260 cm
• Outer reflector diameter: 63 cm
• Useful lighting surface: 1710 cm2
• Weight: 45 kg
