SIBELSOUND 400-SUPRA AUDIOMETER - air+bone+software
Category:
browse:
SIBELSOUND 400-SUPRA AUDIOMETER - air+bone+software
Stock availability:
5
Product Code:
33626
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: II A
RDM (NSIS):
252159
CND:
Z121401
EAN/UPC:
8436035522026
GMDN:
10228
CH-REP:
No
UK-REP:
No

certificates

declaration
of conformity

ISO certificates

operator
manual

download
catalogue page

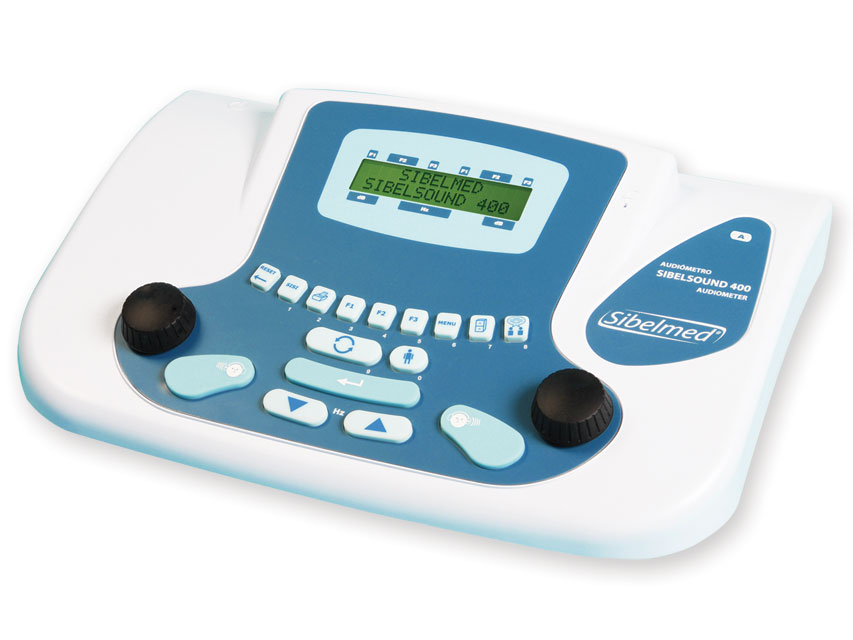

SIBELSOUND 400-SUPRA CLINICAL AUDIOMETER - air + bone + mask + supraliminar tests + W50 software + Intercom kit

Two-channel digital audiometers based on DSP processing.
Designed for quick and easy audiometric exploration of hearing thresholds and screening tests, such as suprathreshold pure tone tests (fowler-ablb, tone decay, weber, luscher, ...).
- Air conduction (tdh 39): 125 - 8,000 Hz or HF: 8,000 - 20,000 Hz with optional HDA 200
- Levels: AC (-10 to 120 dB HL) / bc (-10 to 70 dB HL) / speech (-10 to100 dB HL) free field (-10 to 80 dB HL)
- Masking levels (manual or synchronized): nbn AC (-10 to 100 dB HL) nbn bc (-10 to 70 dB HL) white & speech (-10 to 100 dB SPL)
- Tone: continuous, pulse, anternate, amplitude modulation.
- Level increases: 5 (a-aom), 1 or 5 (supra)
- Frequency precision: ±1%/ level precision ±2% db spl
- Automatic calculation of hearing loss and diagnosis (council, imss mexico, eli, sal, klockhoff, moh, others ...)

Communication system:
- Print directly to a USB printer or connect to W50 Software.
- Direct usb connection to PC to W50 audiometry software for viewing, storage, transmission, analysis and introduction of audiometric tests. It also allows to input data performed by other audiometers and show automatic diagnosis (council IMSS,...). Compatible Windows 7, 8.1 and 10 (32/64 bits).

Dimension: 390x260x105 mm
Weight: 2.4 kg without accessories
Power: 100-240 V, 50/60 Hz
LCD alphanumeric backlight 2 lines of 16 characters
User manual GB, IT (available on request FR, ES)
Technical Specifications
Audiometry type: 2 clinical
Air conduction TDH 39
Bone conduction B71
Masking by white narrow band & speech noise
Sisi test
Supraliminar tests
Speechaudiometry
Intercom kit (headphone + microphone)
Musical frequencies
Intercom data base: 1,000 tests
USB connectivity
W50 audiometry software
