QUATTROLUCI LED LIGHT - ceiling double
Category:
browse:

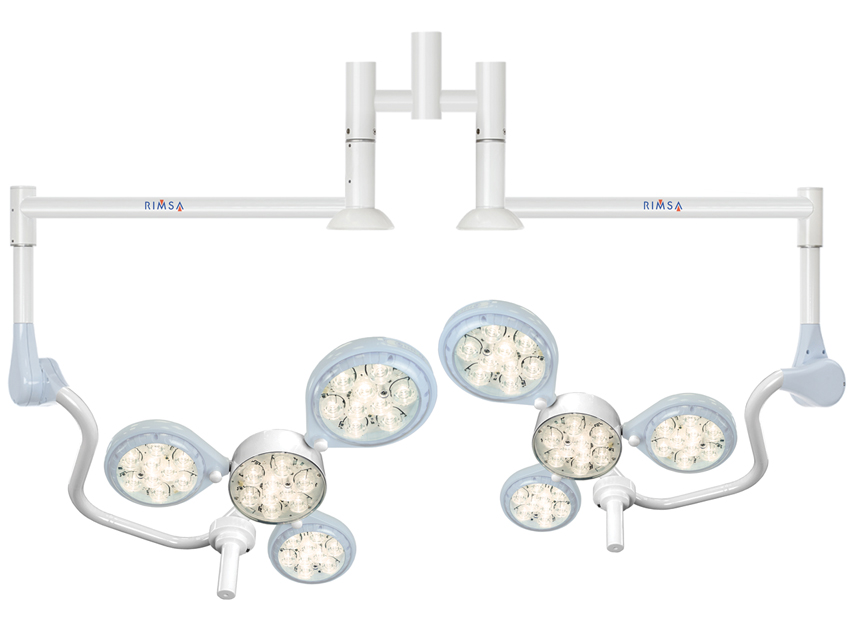

QUATTROLUCI LED LIGHT - ceiling double
Stock availability:
1
Product Code:
49154
Unit of sale:
1 pc.
Minimum order:
1
Type: Medical device  Class: I
RDM (NSIS):
2395932
CND:
Z12010701
EAN/UPC:
8023279491548
CH-REP:
No
UK-REP:
No

declaration
of conformity

ISO certificates

operator
manual

download
catalogue page
Quattroluci Led light double - ceiling (ceiling >3.58 m needs 30788)

Aerodynamic design, extremely handy structure, high technology, quality and performance in one lamp. The multicircular reflector, designed to light up the work area thoroughly and suppress all the shadows, is equipped with handy side handles to facilitate positioning.
The ultra-flat lighting body is equipped with ultra-resistant polycarbonate screen, which guarantees protection against possible accidental collisions. Its rotation on 4 axes facilitates positioning.
The dome consists of 36 LED lenses arranged radial fashion on 4 module of 9 LED each, to ensure light continuity even in the rare case of individual LED fault.
Light intensity is 160,000 lux.
Adjustable focalization and light field diameter.
Excellent for oral and maxillofacial surgery and aesthetic plastic surgery.

QR manual: GB, FR, IT, ES, PT.

Made in Italy.
Technical Specifications
Light intensity: 160,000 lux at 1 m distance
Colour temperature: 4,900° K
36 LEDs average LED life: >60,000 hours
CRI (Chromatic Rendering Index): 94
Diameter of the reflector: 60 cm
Diameter of illuminated field: 30 cm
Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 174 cm
Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 110 cm
Total radiated energy: Ee 570 W/m2
Weight kg: 15
Min./Max. height of the room (ceiling version): 255-334 cm (ceiling >3.34 m needs 30788)
Power supply: 100-240V - 50/60 Hz
Norms: IEC 60601-1, IEC 60601-2-41 - EU 2017/745
