SUPER-VEGA SUCTION UNIT 1 liter jar GB,FR,IT,ES,PT,DE,CZ,LV,EE,FI,SI,BG
|
|
| 28211 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| No | |
| No |
| 590729 | |
| Z120105 | |
| 8023279282115 | |
| 36777 | |
| 903613267 | |
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity

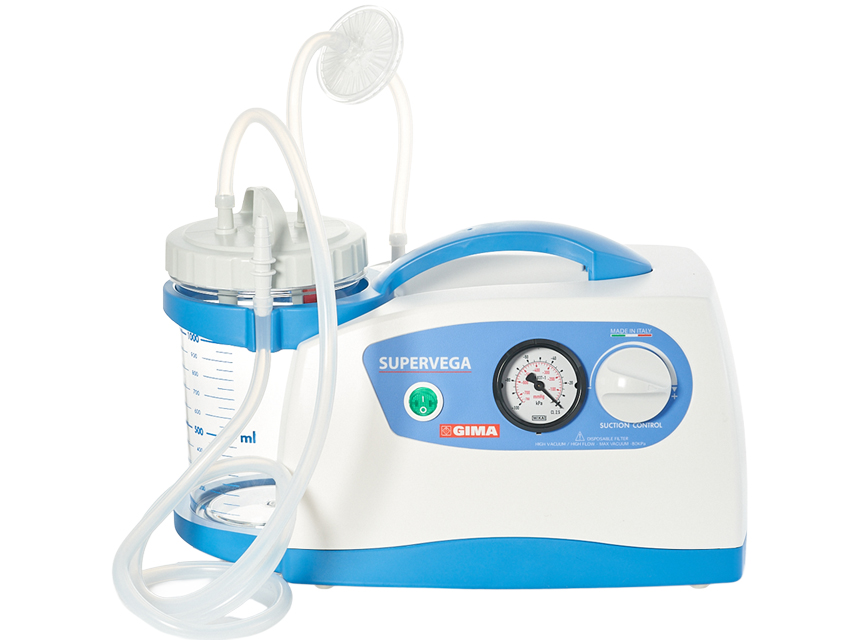

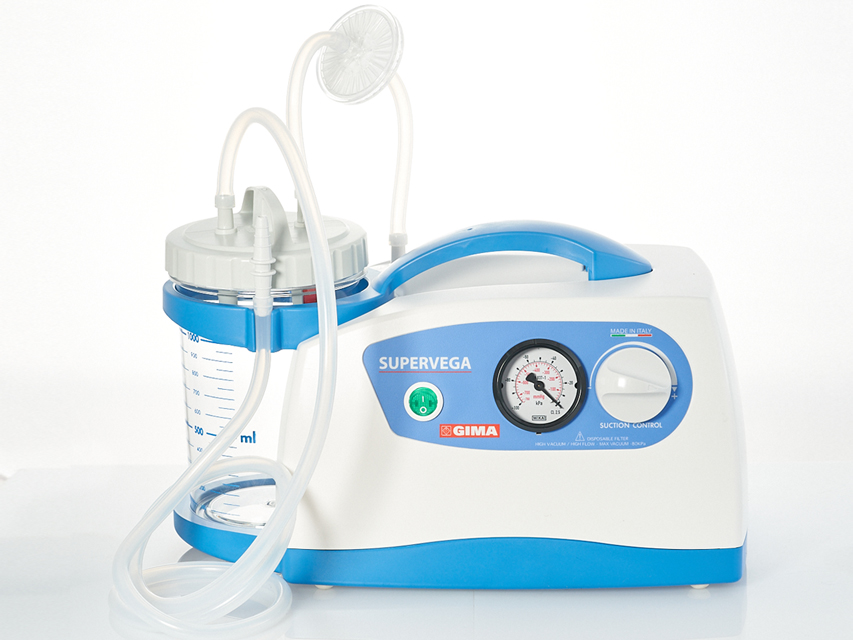

VEGA SUCTION UNIT
Model: Super Vega 1l
Operating Power: 220-230 V - 50/60 Hz
Flow: 40 l/m
Manual: GB, FR, IT, ES, PT, DE, CZ, LV, EE, FI, SI, BG
A line of stylish, compact, and reliable aspirators for small surgery. Silent, high-flow, and maintenance-free pumps allow long product life and durability. Recommended for nasal aspiration, oral aspiration, and tracheal aspiration of body fluids (mucus, catarrh, or blood) in adults or children.
Equipped with continuously adjustable vacuum regulator and vacuum indicator
Unbreakable 1,000 ml Makrolon® jar, autoclavable at 121°C
Safety float control valve to prevent overflow
Optional APEC® jar autoclavable at 143°C
Manufactured with an electric and thermally insulated plastic body
Flovac® autoclavable jars and disposable collection system: in addition to the standard autoclavable jar, a disposable collection system is available, composed of a rigid reusable jar, a polyethylene disposable liner with hermetically sealed cover, and a hydrophobic, antireflux, antibacterial filter operating as an overflow valve.
Made in Italy.
Operating Voltage: 220-230 V - 50/60 Hz, 110 V - 60 Hz (on request) or 110-127 V - 60 Hz
Power Consumption: 110 VA
Bottle Capacity: 1,000 ml
Flow (air litres/min): 40 l/min
Max Suction: -0.80 bar (600 mm/Hg)
Operating Cycle: Continuous
Noise Level: 60.5 dBA
Size - Weight: 35x21x18 cm - 3.6 kg
Norms: EN 60601-1-1, EN 60601-1-2, EN 60601-1-11, 93/42/EEC
Autoclavable jar (1 l) with overflow valve system
Antibacterial and hydrophobic filter
Set of silicone tubes 6x10 mm
Conical connector for probes
