SPIROLAB COLOUR SPIROMETER with 7" touchscreen, printer and software
|
|
| 33519 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| 2572528 | |
| Z12150102 | |
| 8023279335194 | |
| 977813904 | |
Box/Label
Technical Sheet/Test Report
CE Certificate + extension letter
Declaration of conformity

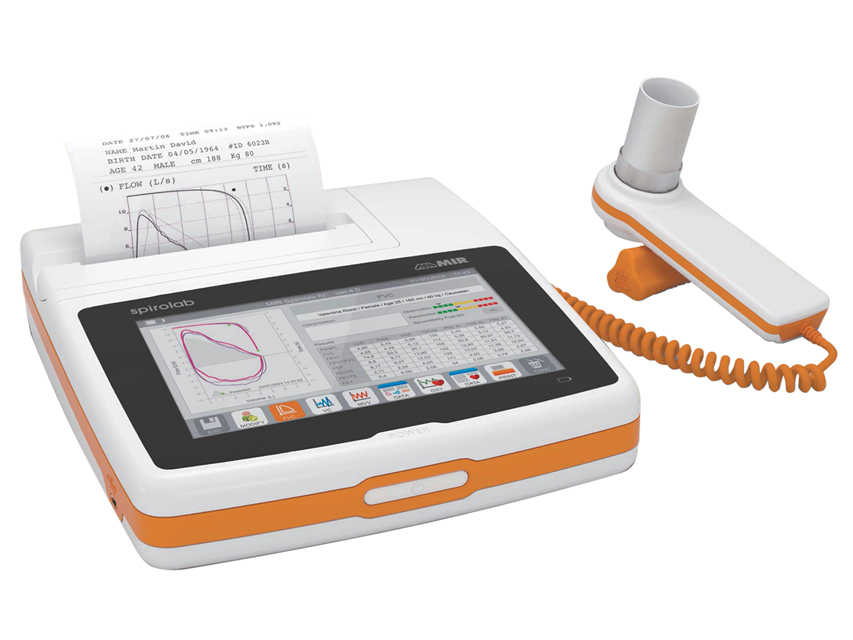

SPIROLAB® SPIROMETER WITH 7” TOUCHSCREEN
Fast, simple, durable diagnostic spirometer with Miniflowmeter.
Features
- FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters
- long life rechargeable battery
- colour Touchscreen 7“ display
- direct connection to external USB Printer PostScript
- 10,000 Spirometry tests or 500 hours of oximetry recording
- selectable internal software languages: GB, FR, IT, ES, DE, PT
- fast and silent built-in B/W printer with customizable printout format
Fast and user friendly
Each function can be activated by a simple touch.
FlowMIR® disposable turbine - complies with ATS/ERS standard
Totally disposable (mouthpiece, turbine) guarantees 100% hygiene, no cross contamination. No calibration required.
MDR certified
Suitable for children
Patented pediatric incentive directly on the screen. No need of adaptor.
Dimensions: 220x210x51 mm (8,66x8,26x2“)
Weight: 1450 g (3,1lb) (battery pack included)
MIR SPIRO PC software
The next-generation software for Spirometry and Oximetry.
It complies with ATS/ERS 2019. Powerful and advanced, provides a wide range of features in a new graphic and customizable settings. New user interface, much more user intuitive and easier interoperability for EHR/ EMR integration. Automatic updates provide the latest version of software.
MIR Spiro PC Software one year licence subscription included with all MIR spirometers and oximeter.
MIR Spiro software licence has one-year validity
Annual Platinum subscription renewal on mymir.spirometry.com
TEST:
FVC Pre/Post, SVC Pre/Post
Oximetry Spot
24h oximetry holter
MVV Pre/Post
Oximetry 6MWT, Oximetry Sleep
PATIENT MANAGEMENT:
New patient / Patient List / Patient Search
Patient Session Summary
Patient Risk factors/Symptoms
Test cronology comparison
Worklist
PRINTOUTS:
FVC Printout STD and ATS 2019
FVC Printout STD NIOSH/OSHA
Oximetry Calibration Printout and VC Printout
Quality Grade Printout
DATA MANAGEMENT:
Data sharing/Interoperability
Data import from Legacy db
Data Import from third parties sfw db
Data Export in Excel/csv/ATS/HL7/GDT
Data Recovery
Emphysema Severity Index (ESI)
ESI Method Artificial Intelligence
PC SYSTEM REQUIREMENTS:
Windows: 8, 10, 11 (all 32, 64 bit); RAM 1 GB for 32 bit or 2 GB for 64 bit / 1 GHz or faster processor, two or more cores in a 64 bit processor / 1 GB free hard disk space
Mac iOS: operating system from 10.13; RAM 2 GB (recommended 4 GB) / 1 GB free hard disk space
Connection: USB port or Bluetooth low energy
Multilingual software: GB, FR, IT, ES, PT, DE, PL, HU, RO, SE, NL, CZ, LV, TR, UA, GE, RU, CN, JP
TECHNICAL SPECIFICATIONS - SPIROMETRY
Power supply: Rechargeable battery, approx. 10 hours autonomy
Battery charger: 100-240 V, 50-60 Hz, 400-200 mA
Temperature sensor: semiconductor (0-45°C)
Flow sensor: bi-directional digital turbine
Flow range: ±16L/s ±5% or 200mL/s
Volume accuracy: ±2.5% or 50mL
Dynamic resistance: <0.5 cm H2O/L/s
Connectivity: USB 2.0, Bluetooth®
Display: 7” colour touch screen LCD, 800x480 resolution
Mouthpieces: Ø 30 mm (1.18 inch)
Electrical protection: Class II
Norms:
Electrical safety standard EN 60601-1
Electromagnetic compatibility EN 60601-1-2
SPIROMETRY PARAMETERS
FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).
Battery charger
1 roll thermal paper
Reusable turbine
Carrying case
USB port and cable
MIR Spiro PC software
Manual: GB, IT, (FR, ES, DE, PT, NL, SE, PL, HU, RO, BG, RU, GR available on www.gimaitaly.com)
