PAINTED STEEL EMERGENCY TROLLEY - standard

  • 1
45694
1 pc
1
Medical device
I
No
No
2194603
V0899
8023279456943
Download Area
Declaration of conformity
Declaration of conformity

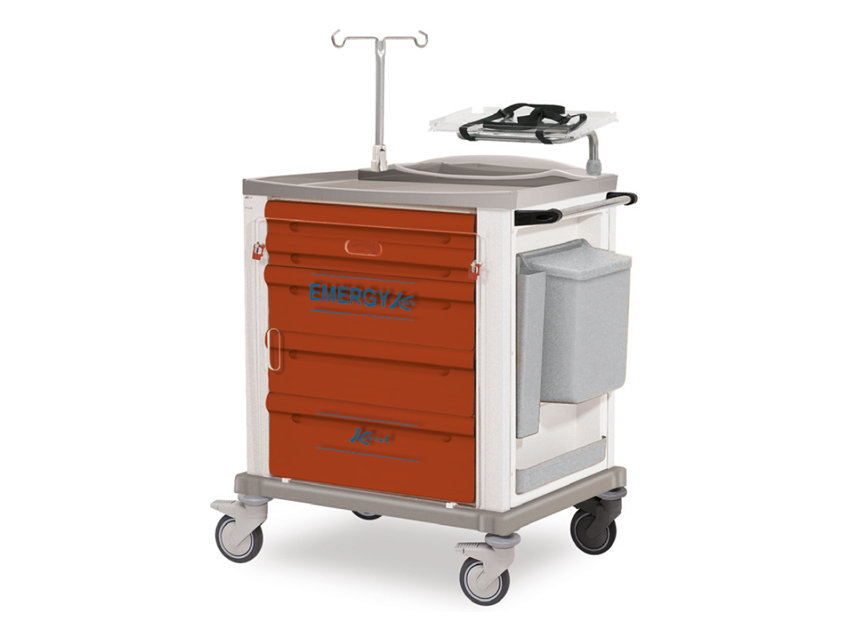

Painted steel emergency trolley - standard
Trolley size (cm): 82x64xh 100-160
Number of drawers: 5
Drawers material: plastic

Professional, solid and sturdy emergency trolleys with components in plastic material (technopolymer) or stainlesssteel sheet painted with epoxy powders to obtain maximum lightness, maneuverability and ease of use.
Self-supporting and monocoque structure.
Upper part has large support surface in technopolymer plastic material to facilitate cleaning and disinfection.
Ergonomic push handle firmly attached on the right side of the trolley.
Front part designed for insertion of modular drawers: silent sliding of the drawers on guides with ball bearings, equipped with limit stops and designed for central locking with seal.
Defibrillator plate has a plexiglass plate and tubular support in stainless steel, 360° rotatable and lockable every 10°, device can be locked by means of straps that can be adapted to any size.
Stainless steel IV stand adjustable in height with locking device.
Heart massage plate made of transparent plexiglass.
Five standard drawers entirely made of plastic material.
Additional extractable worktop in technopolymer plastic material on the left side; built-in compartment complete with four shelves with front panel all made of technopolymer plastic material.
4 castors Ø 125 mm, anti-thread, pivoting of which 2 antistatic and 2 with locking system with lever, wheel and fork on ball bearings.

Drawers number/size:
2) 60x47.5xh 7.5 cm
2) 60x47.5xh 15 cm
1) 60x47.5xh 22.5 cm

Defibrillator plate: 39x32xh 2 cm
Dimensions (cm): 82x64xh 100-160

Right side:
Waste container
Catheter or probes holder
Shelf with front panel
Recessed compartment

Left side:
Extractable worktop
Compartment with 4 shelves and front panel

Rear side:
Built-in gas bottle compartment with fastening straps
Bar with hooks for accessories

Upper part:
IV stand
Defibrillator tray
