TRIANGLE BASIC SCREENING AUDIOMETER - air
|
|
| 33619 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| Yes | |
| Yes |
| 2351781 | |
| Z121401 | |
| 8054187380778 | |
Download Area
Operator Manual
CE Certificate + extension letter
Declaration of conformity

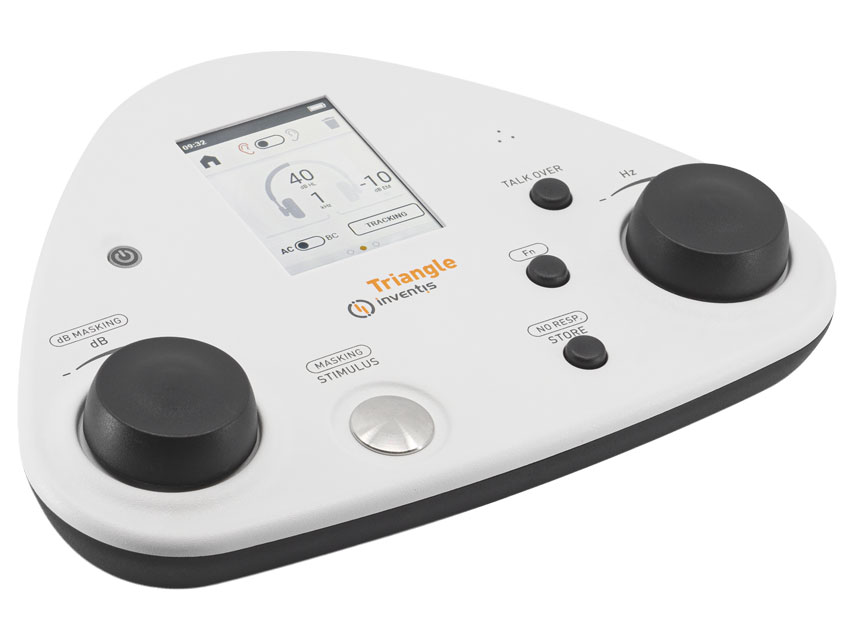

TRIANGLE BASIC SCREENING AUDIOMETER - air
Triangle is a battery-operated, portable screening audiometer, capable of performing automatic and manual pure tone audiometry exams in air conduction.
Designed to deliver fast, accurate, and reliable pure tone audiometry for healthcare professionals on the move.
Its unique combination of advanced technology and userfriendly design, featuring a capacitive colour touchscreen, allow for intuitive operation, making hearing screening simpler and more efficient than ever.
- Pure Tone Audiometry in AC
- compact and lightweight
- rechargeable lithium battery delivers over 12 hours of continuous use
- internal memory for 100 patients
Made in Italy.
Type of device: screening audiometer
Class IEC 60645-1/ANSI S3.6: type 4
Output: AC
Warble tone: Yes
Pulsed tone: 1 Hz, 2 Hz
Frequency range: 125-8,000 Hz
Maximum output intensities: AC: -10 to 100 dB HL
Attenuator step: 5 dB
Automatic audiometry: available algorithms: Hughson Westlake, Quick Search, Fixed Intensity
Talk over: built-in microphone
Compatible software: Maestro
Memory: up to 100 patients
Display: TFT LCD touchscreen display, 240x320 resolution
Display size: 2.8", 43.2x57.6 mm
Power supply: built-in lithium rechargeable battery
Operating voltage: 100-240 V, 50/60 Hz
Size -weight: 21x16x4 cm - 425 g
DD45 supra-aural headphones
USB connection cable
Patient response switch
Soft carrying case
Audiogram cards Medical grade power supply
User manual: GB, FR, IT, ES, DE.
On-line manuals PT, NL, DK, SE, NO, LT, LV, EE, PL, HU, RO, BG, GR, TR available on gimaitaly.com
In the same family are available
