SLEEP APNEA SCREEN METER
|
|
| 33676 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| 1163951 | |
| Z12080406 | |
| 8023279336764 | |
| 12575 | |
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates

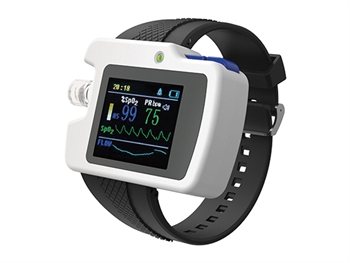

SLEEP APNEA SCREEN METER
Suitable for people who have obstructive sleep apneahypopnea syndrome (OSAHS), chronic obstructive pulmonary diseases (COPD), asthma, vascular disease or people over 60 years old.
For hospital and home use.
- wrist-design, small and light weight
- multi-function device, to know physiological information
- displays SpO2, PR, pulse sound, bar graph
- display of pulse and nasal airflow waveform
- alarm for low-power, finger-out and over-limit
- real-time clock
- multi-care record
- 20 hours continuous recording
- PC analysis software
Nasal airflow measure range: 0-40 rpm ±2 rpm
SpO2 measuring range: 0-100 % ±2 % (70-100 %), resolution 1%
Pulse Rate measuring range: 30-250 bpm ±2 bpm or ± 2% (select the larger)
Resistance to surrounding light: The difference between the value measured in the condition of man-made light and indoor natural light and that of darkroom is less than ±1 %
Display: 1.8" colour LED
Power consumption: =100 mA
Power supply: 3.7 V rechargeable lithium battery
Battery working hour: continuously work for more than 20 hours
Safety Type: I nternally powered, Type BF applied part
Dimension of device: 69x50x17.3 mm
Weight: 100 g (lithium battery included)
Adult, Neonatal disposable SpO2 probe
Adapter
Adult SpO2 probe
USB cable
Software
Nose-oxygen tube
Manual (GB, FR, IT, ES)
