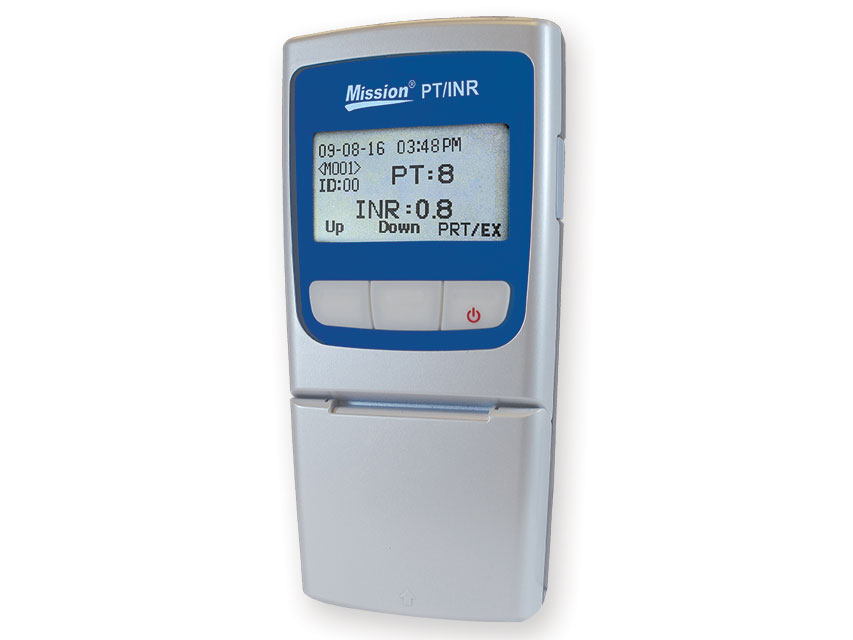

MISSION® PT/INR COAGULATION MONITORING SYSTEM
(Sold out)
|
|
| 23926 | |
| 1 pc | |
| 1 | |
| IVD - Self Test |
| No | |
| Yes |
| 1838349 | |
| W0202020101 | |
| 0682607611379 | |
| 977810480 | |
Operator Manual
Certificates
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates
Coagulation testing for professional and self use
Reliable
- quick results for Prothrombin Time (PT) in seconds and International Normalized Ratio (INR)
- large INR range of 0.7-7.0
- individually packed strips with 24 months shelf life
- external optional printer available for quick printing of results
- clinical accuracy: ISO 17593 compliant
Simple operation
- results in about 2 minutes
- requires only a single drop of capillary blood or 15 µL of venous whole blood
- insert strip, apply specimen and read results
User friendly
- handheld portable meter easy to use and ideal for physician offices and home testing
- patients ID, password protected results
- operates with 4 AA batteries or standard AC adaptor
Methodology: Optical fluorescence
Time to results: About 2 minutes
Memory: 200 results with date/time
Specimen volume: 15 µL
Specimen type: Fresh capillary or venous whole blood
INR mesurement range: 0.7-7.0
HCT range: 25-60 %
Precision Repeatability and total precision: <10%
Accuracy (capillary whole blood): Y=1.076X-0.078, R=0.924
PC interface: Mini USB
Power source: 4 AA batteries or AC adaptor
Battery life: >100 tests
Meter dimension (LxWxH): 152x72x38 mm (6.0"x2.8"x1.5")
Display dimension (LxW): 53x29 mm
Weight excluding batteries: 170 g (6.0 oz)
1 quick reference guide
1 AC adaptor
4 AA batteries
1 carrying case
1 user manual (GB, IT) on request DE, ES, PT
