URILYZER 500 PRO URINE ANALYZER with printer
|
|
| 24050 | |
| 1 pc | |
| 1 | |
| IVD - Professional Use | |
| A |
| 2560727 | |
| W020101020102 | |
| 4260033719133 | |
Operator Manual
Declaration of conformity
ISO 9001/13485 Certificates

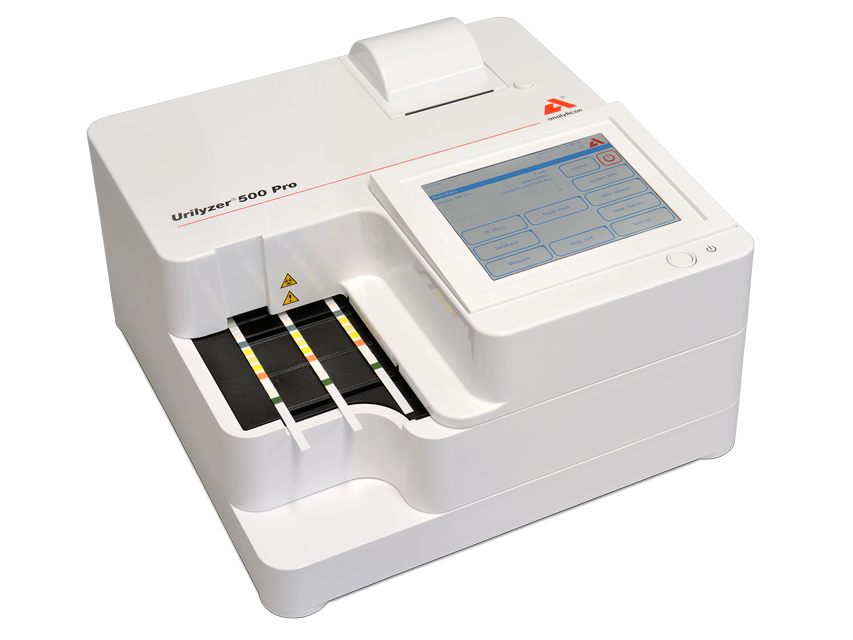

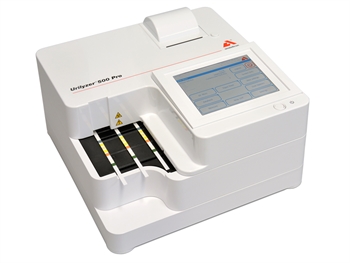

URILYZER® 500 PRO URINE ANALYZER with printer
Semi-automated and compact urine test strip analyzer with continuous loading function. The high throughput of up to 500
tests/hour in combination with state-of-the-art operator and data management functions provide the ideal system for mid-sized to bigger laboratories and hospitals. It also provides enhanced QC management and connectivity capabilities to meet the growing demands for compliance management and data capture.
Available software in GB, FR, IT, ES, DE, PL, HU, RO, SE, RU.
- external barcode reader
- built-in thermal printer with automatic printout or transfer of results
- up to 500 tests/hour due to the possibility of testing urine strips continuously
- implemented protocols: LIS2 (ASTM+) and HL7
- customization of the QC protocol according to regulatory requirements and laboratory standards.
Moreover, the system offers high quality and efficiency, high level of customization with flexible testing and reporting options.
Made in Hungary.
Measuring method: reflectance photometer with 4 discrete wavelengths 505, 530, 620, 660 nm
Parameters: Bilirubin, Urobilinogen, Ketones, Ascorbic Acid, Glucose, Protein (Albumin), Blood (Hemoglobin), pH, Nitrite, Leucocytes, Specific Gravity
Measurements: up to 500 tests/hour
Data storage: patient database: 5.000 tests / QC database: 5.000 tests
Display: 5.7” LCD VGA capacitive touchscreen
Interfaces: serial RS232, USB Type A, USB Type B, PS2 (external keyboard, barcode reader), Ethernet
Power supply: 12V DC/5A
Size- weight: 300x300xh 180 mm - 6.5 kg
