CARDIONICA 1 CHANNEL ECG WITH AFIB and BLUETOOTH

  • 9
33234
1 pc
1
Medical device
II A
Yes
Yes
2494753
Z12050301
8023279332346
964059240
Download Area
Operator Manual
Operator Manual
Box/Label
Box/Label
CE Certificate + extension letter
CE Certificate + extension letter
Declaration of conformity
Declaration of conformity
ISO 9001/13485 Certificates
ISO 9001/13485 Certificates

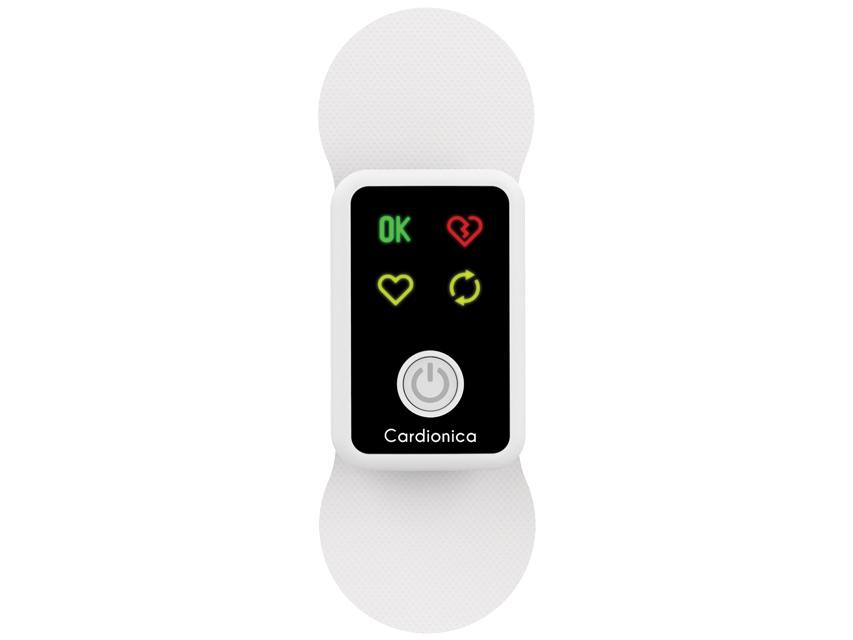

CARDIONICA™ 1 CHANNEL ECG with AFib and Bluetooth® 4.0

Medical-grade single-lead ECG, ideal for heart rhythm check and immediate detection of arrhythmias, atrial fibrillation, tachycardia, bradycardia, as well as stroke prevention. Display with coloured LED indicators and internal memory up to 100 tests. Noise reduction and motion artefact detection.

- One minute test: heart rhythm tracking in one minute, everywhere, with the accuracy of a clinical setting.
- Real time ECG: immediate detection of possible heart problems.
- Stand alone or via App: applying the adhesive electrode on the chest, it can be used in stand-alone mode or connected to smartphone via Bluetooth.
- Free Cardionica App for data sharing: it allows to track personal ECG and to share reports in PDF and EDP format via E-mail, WhatsApp and other Apps.
- Certified accuracy: ECG analysis in line with 2020 AF guidelines (ECG, P-wave, RR irregularity), accurate in compliance with international Standard IEC 60601-2-47.
- Supplied with 4 reusable electrodes, button battery CR2032 and multilingual manual GB, FR, IT, ES, PT, DE, NL, PL, SE, SK, RS, TR.

Medical Device Class IIa MED 9826.

Lead: Single lead
CMRR: 100 dB 50Hz
Accelerometer: Tri-axial accelerometer
Input impedance: > 10 MOhm
Sampling rate: 250 S/s
Memory: 100 ECG, 1 minute each
LEDs: Green, orange, red
Power supply: Lithium battery 3V (CR2032)
Current capacity: 210 mAh
Battery: 300 uses or 2 years
Protection: Internally powered, type BF
Size - weight: 57x37x15 mm - 20 g (battery included)

In the same family are available
