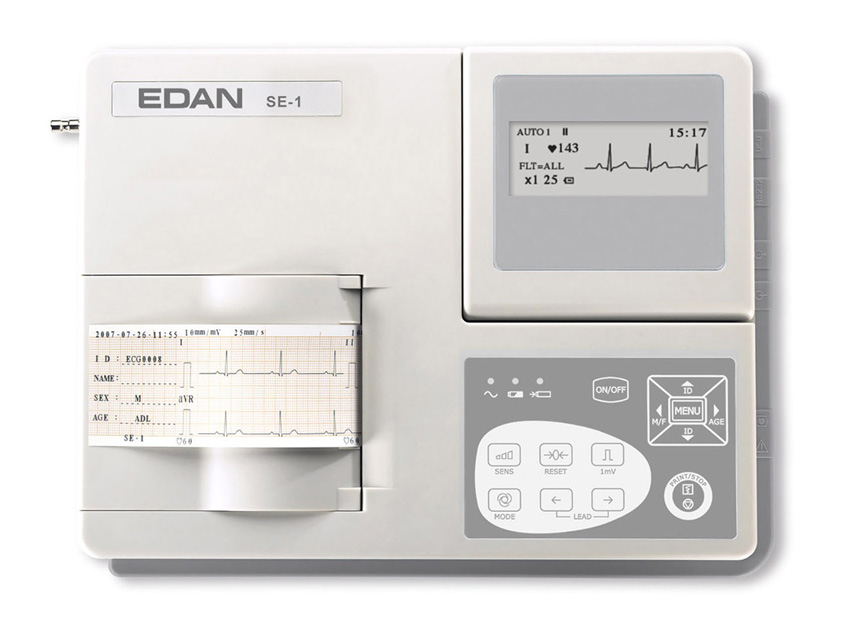

EDAN SE-1 ECG - 1 channel with monitor
(Sold up to the end of stock)
| 33330 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| No |
| 213455 | |
| Z12050302 | |
| 8023279333305 | |
| 11413 | |
| 16231 | |
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates
Edan SE-1 Single channel portable ECG.
- foldable LCD screen vivid waveform display
- built-in high resolution thermal printer
- built-in rechargeable Li-ion Battery, AC/DC supply
- complete digital filter, avoid baseline drift, AC,EMG interfere
- automatic baseline adjustement
- auto/manual operation selectable
- lead-off detection and alarm
• Lead: Standard 12 leads
• Acquisition mode: Single
• Sensitivity: 2.5, 5, 10, 20, mm/mV
• Input impedance: > 50 MOhm
• Filter:
- EMG Filter 35 Hz (-3 dB)
- AC/DFT Filter 50 Hz / 60 Hz (-20 dB)
• Recording mode: Auto/Manual
• Rhythm lead: Any lead selectable
• Safety standard: IEC I/CF
• Power supply:
- AC: 100 V - 115 V / 220 V - 240 V, 50/60 Hz
- Rechargeable Li-ion battery: voltage 14.8 V
- More than 3 hours continuous operation with battery supply
• Thermal paper: 50 mm x 30 m
• Paper speed: 25 mm/s, 50 mm/s (± 3%)
• Dimension: 300 x 260 x 75 mm
• Weight: 2,3 kg with battery included
• Display: 192 x 64 pixels LCD
• Selectable display language: GB, IT, FR, ES, PL, RU, TR, UA
• Interface: RS 232
• Patient Cable
• 1 roll of paper
• 4 limb electrodes
• 1 bottle of gel
• Rechargeable battery
• 6 chest limb electrodes
• Manual: GB, IT (on request: FR, ES, PT, TR)
