NEO ECG S120 TABLET ECG - BANANA PLUG
|
|
| 54230 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| 2160130 | |
| Z12050301 | |
| 8023279542301 | |
| 16231 | |
| 950975932 | |
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity

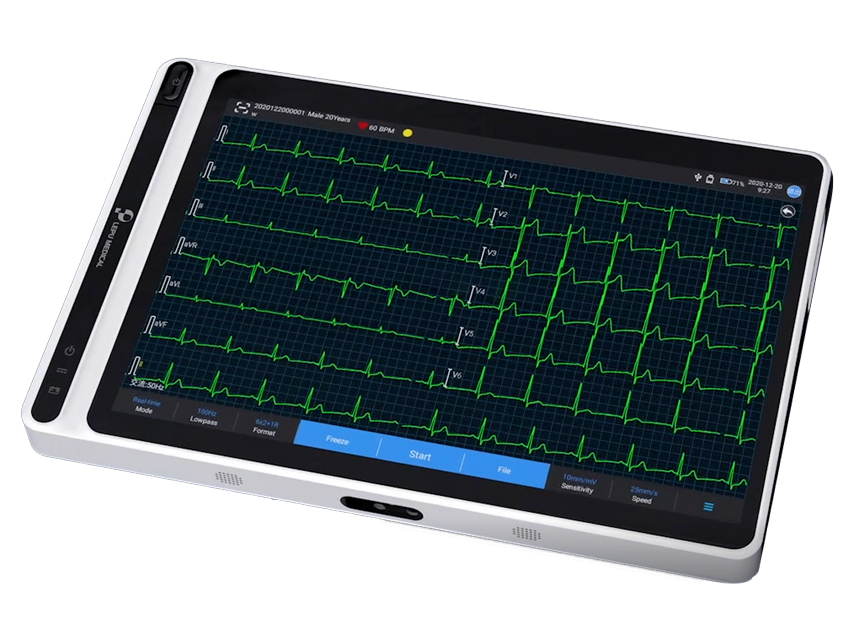

NEO ECG S120 - ECG TABLET - BANANA PLUG
Light and portable ECG tablets for acquisition and displaying of 9/12 lead waveform, as well as heart rate detection.
7” high resolution colour touch screen, easy to operate.
It can store, preview, review, edit and upload patient data through wireless transmission of ECG data via WiFi and mobile networks.
Patient data can be exported to USB flash disk via USB connector.
- Glasgow algorithm
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling and trigger sampling
- automatic pacing detection and marking
- auto RR analysis, HRV, medicine test, ECG event mode
- files in multiple formats: Carewell EC G, PDF, BMP, HL 7, DICO M, SCP
- freezing of ECG waveform on the screen
- virtual keybord and barcode scanning to insert patient information
- external DC power supply and built-in rechargeable battery
- multilingual selectable software: GB, FR, IT, ES, PT, DE, GR, PL.
ECG leads: 9,12 synchronous acquisition
A/D resolution: 24 bits
Heart rate range: 30 bpm-300bpm ± 1
Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, less than ± 5% error
Printing speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, less than ± 3% error
Sampling rate: 32000 samples/sec
Filters:
AC (50-60 Hz, off), EMG (25-35-45 Hz off)
ADS (0.01-0.05-0.32-0.67 Hz)
Low pass filter (75-100-150-300 Hz off)
Frequency response: 0.01-350 Hz (+ 0.4-3.0 db)
Minimum delectable signal: 20 μVp-p
Electrical:
Internal noise: ≤ 12.5 μV
Input impedance: ≥ 100 MΩ (10 Hz) circuit current: ≤ 10 nA
Calibration voltage: 1mV ± 2 %
Depolarization voltage: ± 900 mV, ± 5 %
Commode mode rejection: ≥ 140 dB (AC filter on) / ≥ 120 dB (AC filter off)
Amplitude quantisation: 0.95 μV/LSB
Recovery time after discharge: < 10 s
Display: 7"
Size - weight: 19.7x11.2x h 2.6 cm - 0.8 kg
1 ECG cable IEC, Ø 4 mm, banana connector
6 pcs adult precordial suction electrodes (Ø 4 mm)
4 pcs adult limb clamp electrodes
1 rechargeable lithium battery
1 power adapter
Multilingual manual: GB, IT (FR , ES , PT , DE, GR, PL , RU on www.gimaitaly.com)
