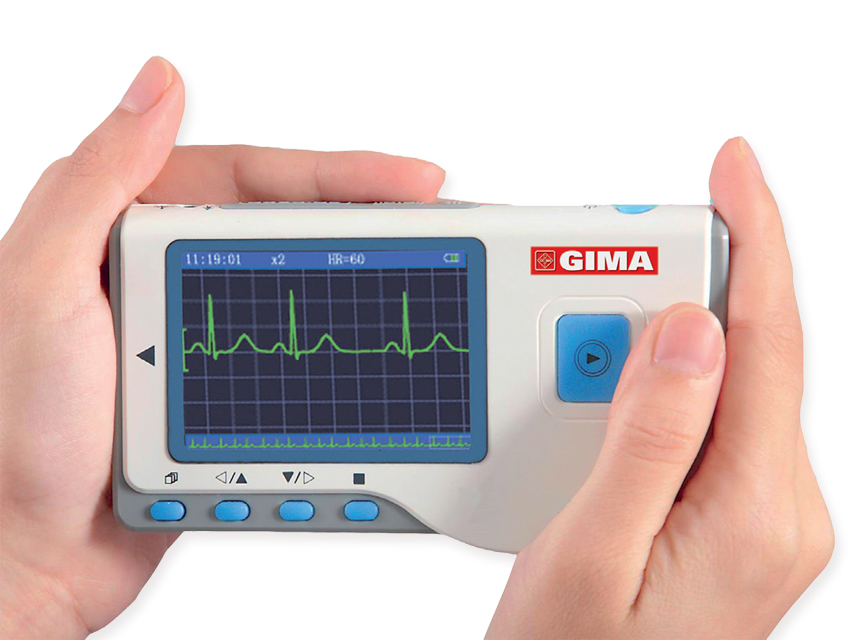

CARDIO-B BLUETOOTH PALM ECG with software
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates
Test Report
CARDIO B with Bluetooth module for wireless data transmission. Allows to download data on your smartphone or tablet, compatible with Android.
Designed for general practitioners or for domestic users who suffer from cardiovascular diseases such as hypertension, coronary disorders, giving the possibility of a daily ECG test. Records can be saved and used for clinical applications.
4 measurement modes: palm, leg, chest or lead wire traditional measurement.
Main features:
- small, portable and easy to use
- 30 second ECG waveform and measurement results
- 1200 ECG waveform can be saved
- 10 hours ECG continuous measurement data storage
- analysis and report of 17 types of ECG waveform
- USB 2.0 interface with optional data cable and ECG software
- traditional measurement with optional ECG cable
Supplied with multilanguage manual and box (GB, FR, IT, ES).
• ECG bandwidth: 0.5 Hz - 40 Hz
• Heart rate measuring range: 30 - 240 bpm ± 2 bpm
• LCD back light display: 240 x 160 dot matrix
• Display size: 57.6 x 40 mm
• Power: 2 x AAA batteries
• Size 125 x 70 x 21.5 mm
• Weight: 106 g
