CHECKME PRO VITAL SIGNS MONITOR WITH ECG HOLTER - WIRELESS
Operator Manual
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates

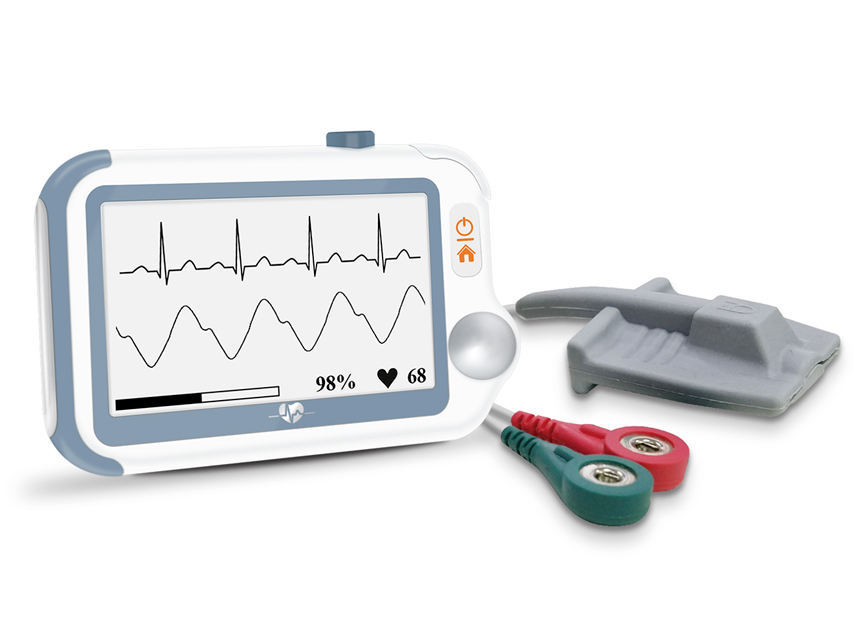

CHECKME™ PRO VITAL SIGNS MONITOR WITH ECG HOLTER - wireless
All-in-one, compact, versatile and portable wireless vital signs monitors for checking your health anytime anywhere.
Wide range of application scenarios, including: outpatient, emergency, surgeries, telemedicine.
ViHealth App.
Size: 88x56x13 mm
Weight: 80 g
ECG
- supports both cable and cable-free operation
- 500 Hz sampling rate and wide bandwidth
- 30/60s waveform can be replayed
- professional ECG algorithm to provide Heart Rate, QRS duration, ST segment, QT/QTC interval, and rhythm analysis
ECG Holter
- easy to wear and use
- continuously records ECG for 24 hours
- check report and ECG waveform on APP or PC
- report includes heart rate, rhythm and HRV (heart rate variability)
- Holter report can be stored in Cloud, printed or saved as PDF
SpO2
- supports both cable and cable-free operation
- measurement of oxygen saturation, pulse rate and pulse strength
Sleep apnea screening
- SpO2 monitor for OSA (Obstructive Sleep Apnea)
- records and tracks SpO2 and Pulse Rate up to 10 hours
- mobile APP to check SpO2 changes in detail
Wireless Blood Pressure (needs code 35189)
- manage all vital signs data together
Temperature
- Integrated infrared temperature sensor
- quick measurement with high accuracy
- safe and comfortable, no need to wake up child while sleeping
Pedometer
- accurately calculates steps, calories and amount of fat burned
- built-in high accuracy 3D smart sensor
APP
- supports iOS and Android
- wireless, all data can be exported from device to phone/tablet
PC browser
- medical data management software
- user data, user profile, readings and waveform can be exported from Checkme to the browser by USB
ECG cable, SpO2 sensor, ECG electrodes, charge cable, neck strip, user manual, protective cover, wrist band, Y adaptor and sport chest band
Manual: GB, ES, IT, DE, FR
Audio instructions: GB, ES, IT, DE, FR, PL, RU, HU
PC software: GB, FR, IT, ES, DE
ViHealth App: GB, IT, DE, FR, ES, HU, CZ
