SPENCER JET COMPACT 300D PORTABLE SUCTION UNIT
|
|
| 28177 | |
| 1 pc | |
| 1 | |
| Kit of medical devices |
| 79643 | |
| 8023279281774 |
Operator Manual
Declaration of conformity
ISO 9001/13485 Certificates

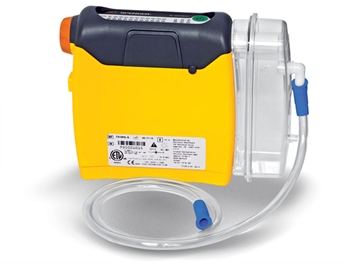

JET COMPACT PORTABLE SUCTION UNIT
Extremely compact suction device to be used to remove fluids from the airway or respiratory support system.
The device creates a negative pressure that draws fluids through disposable tubing that is connected to the collection container.
Easy view of the setted vacuum thanks to the LED indicators.
Classification ISO: high vacuum / high flow.
Supplied with 12 V power cable, battery, disposable container with filter, disposable patient tube, manual GB, IT.
Made in Italy.
Dimensions: 245 x 70 x 185 mm
IP grade: IP 12
Weight: 1.60 kg
Battery: 12 V DC Ni-MH
Vacuum range: from 50 to 550 mmHg
Battery operative time: 30 min ON, 30 min OFF
Flow (free flow): 32 l/min
Noise level: 70 dB
Battery recharging time: 5 h
Electrical connector requirement: 100-240 VAC 47-63 Hz 0.75 A max: 12 VDC
Container capacity: 300 ml
Patient tube length: 1 m
