SUPERVEGA 118 BATTERY SUCTION UNIT 230V
|
|
| 28241 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| 1744549 | |
| Z120105 | |
| 8054619104514 | |
Operator Manual
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates

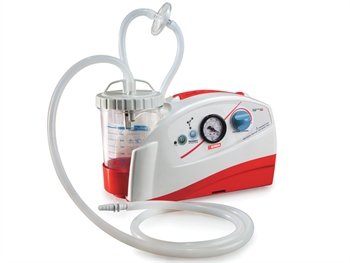

Supervega 118 battery aspirator
Supervega 118 and Supervega Evo are electric medical and portable devices for nasal, oral and tracheal aspiration of body fluids in children or adults.
Two or three options of operation: by 100-240 V power feeding (28183 and 28241 only), 12 V car adapter or internal rechargeable battery.
Equipped with a long-life brushless motor eliminating any type of smell and coal residuals.
PROXIMITY function: NO-TOUCH ON/OFF
This function prevents and avoids cross-contamination inbetween patients.
Various options of jar
Standard autoclavable (121°C) Makrolon® polycarbonate, optional FLOVAC® disposable liners or autoclavable (143°C) APEC® polycarbonate.
In compliance with EN 60601-1-11 for use in the home healthcare environment and carries IP22 degree protection.
Made in Italy.
• Motor: Oil-less and maintenance-free piston pump
• Power:
- Internal rechargeable Lithium battery (14.8 V - 5.2 A) - Autonomy 70 min
- Car-ambulance adapter (12 V - 4 A)
- AC/DC adapter 110-240 V, 50-60 Hz
• Max vacuum (adjustable): -0.75 Bar; -75 kPa; -563 mmHg
• Max free air flow rate:36 l/m
• Size: 35x19x15 cm Weight: 2.7 kg
• Duty cycle: non stop operation (by mains or 12 V only)
• Noise level min/max: 54.7/68.2 dBA
Polycarbonate jar 1,000 ml with overflow valve system
Antibacterial filter
Suction catheter
Silicone tube set with conical connector
Universal power adaptor (100-240V - 50/60 Hz)
12V car adapter
User Manual GB, FR, IT, DE, ES
