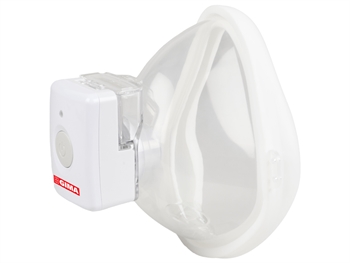

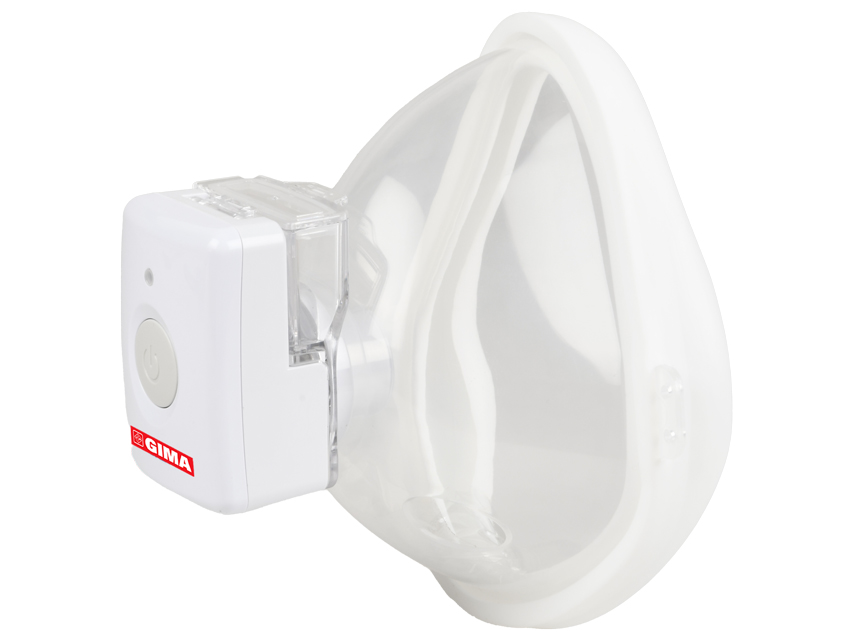

MAGIC NEB WEARABLE MESH NEBULIZER
Pocket size and wearable ultrasonic nebulizer for treatment of respiratory diseases. Reliable quality, soundless operation and fine particle size. Self-cleaning mode: at the end of the treatment, the device mists pure water cleaning the mesh from medication residues.
- battery level indicator
- type-C charge port
- anti-corrosion material
- one-button operation
Supplied with adult mask, child mask, inhalation mouthpiece, built-in battery, type C cable and multilingual manual GB, FR, IT, ES, PT, DE, DK, RO, HR, GR.
Ultrasonic frequency: approx. 110 kHz
Nebulizing: rate =0.2 ml/min
Head life: 180 hours
MMAD: < 5 µm
FPF: = 60%
Max./min. liquid volume: 6 ml / 2 ml
Shutdown: automatic without liquid
Power supply: built-in lithium battery 3.7 V, 300 mAh
Operating time: > 60 min.
Battery life: 500 cycles
Size - weight: 54x36x44 mm - 45 g
Liquid protection: IPX5
