GIMA MT BASE PLUS MAGNETOTHERAPY - domiciliary
|
|
| 28321 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| No | |
| No |
| 11709 | |
| Z120606 | |
| 8033638326299 | |
| 35169 | |
| 977812268 | |
Operator Manual
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates

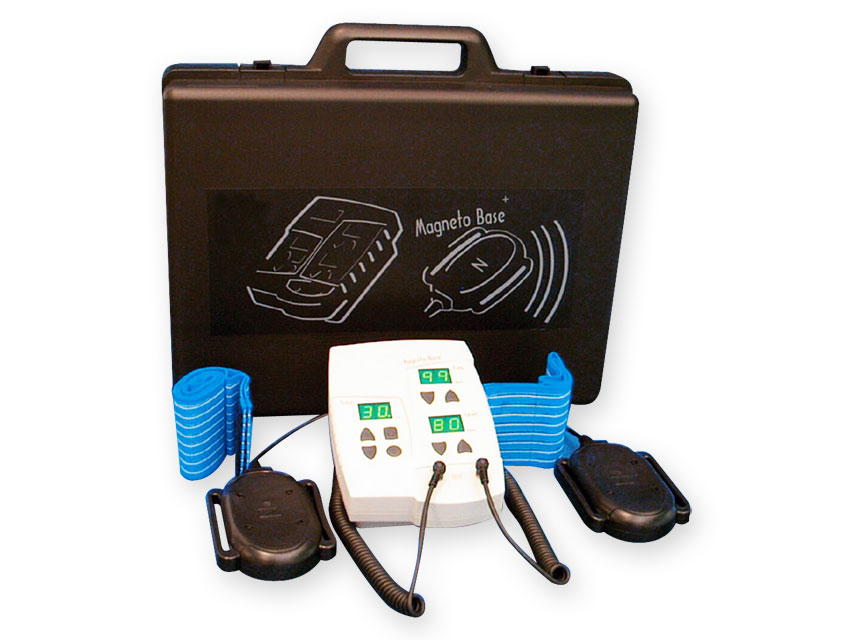

GIMA MT BASE PLUS - magnetotherapy
Magneto Base Plus is an ELF low frequency magnetotherapic unit designed for domiciliary applications.
The most important effects of the magnetic fields are: Antiedemigen / Analgesic / Antiphlogistic / Regenerative and have applications in: traumatology, rheumatology, angiology, neurology, dermatology, endocrinology.
The magnetic field produced is impulsive. The internal generator produces square waveform electrical current with frequency varying from 10 to 99 Hz and impulse time varying so to obtain a field's intensity determinated from 10 to 80 Gauss.
Internal sound sensor of magnetic field and safety system in case of short-circuit.
Two transducers can be connected at the same time (the field produced by each transducer is half of the total).
• Waveform: square
• Max. ratio emission/pause: 50%
• Selectable magnetic field from 10 to 80 Gauss
• Selectable frequency: from 10 to 99 Hz.
• Intensity of magnetic field: 80 Gauss (8mT)
• Operating voltage: 230 V/50-60 Hz
• Size: 193 x 138 x h 68 mm
• Weight: 1 kg
• Safety class: II BF - Norms: EN60601-1 (CEI)
• Power cable
• 2 plate transducers 80 Gauss - 120 x 70 mm
• 1 velcro elastic band 60 x h 8 cm
• 1 velcro elastic band 100 x h 8 cm
• ABS carrying case
• Manual: GB, IT
